TSF13N65M Datasheet - Truesemi

N-Channel MOSFET

TSF13N65M Features

* 13A,650V,Max.RDS(on)=0.47 Ω @ VGS =10V

* Low gate charge(typical 44nC)

* High ruggedness

* Fast switching

* 100% avalanche tested

* Improved dv/dt capability Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol VDSS VGS ID IDM EAS EAR

TSF13N65M General Description

This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices a.

TSF13N65M Datasheet (390.57 KB)

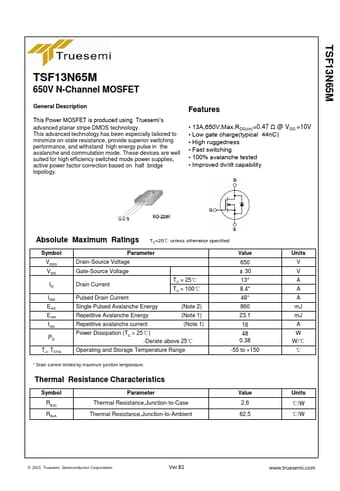

TSF13N65M Datasheet Preview — Preview of TSF13N65M PDF

Datasheet Details

Part number:

TSF13N65M

Manufacturer:

Truesemi

File Size:

390.57 KB

Description:

N-channel mosfet.
