TSF13N65MR Datasheet - Truesemi

TSF13N65MR N-Channel MOSFET

This Power MOSFET is produced using Truesemi‘s advanced planar stripe DMOS technology. This advanced technology has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high energy pulse in the avalanche and commutation mode. These devices a.

TSF13N65MR Features

* 13A,650V,Max.RDS(on)=0.47 Ω @ VGS =10V

* Low gate charge(typical 50nC)

* High ruggedness

* Fast switching

* 100% avalanche tested

* Improved dv/dt capability Absolute Maximum Ratings TC=25℃ unless otherwise specified Symbol VDSS VGS ID IDM EAS EAR

TSF13N65MR Datasheet (385.05 KB)

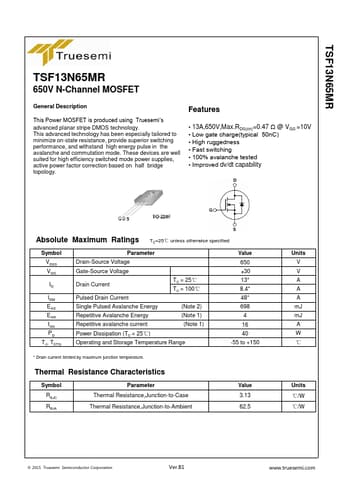

TSF13N65MR Datasheet Preview — Preview of TSF13N65MR PDF

Datasheet Details

Part number:

TSF13N65MR

Manufacturer:

Truesemi

File Size:

385.05 KB

Description:

N-channel mosfet.
