M54123L

EARTH LEAKAGE CURRENT DETECTOR

M54123L Features

* With good input sensitivity current temperature characteristics

* High input sensitivity :VT=6.1mV (Typ.)

* Only need low external component count

* High noise and surge-proof

* Low power dissipation :PD=5mW (Typ.)

* May be used both as 100V and 200V.

* Wide temperature

M54123L General Description

The UTC M54123L is a semiconductor integrated circuit with amplifier for a high-speed earth leakage circuit breaker. For the amplifying parts of earth leakage circuit breaker, the UTC M54123L consists of differential amplifier, latch circuit and voltage regulator. In normal operating, the UTC M54123.

M54123L Datasheet (241.55 KB)

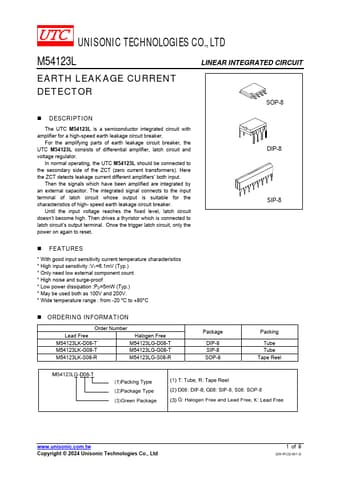

Preview of M54123L PDF

Datasheet Details

Part number:

M54123L

Manufacturer:

UTC

File Size:

241.55 KB

Description:

Earth leakage current detector.
