U74HC595A-Q

8-BIT SERIAL-IN SHIFT REGISTER

U74HC595A-Q Datasheet (258.59 KB)

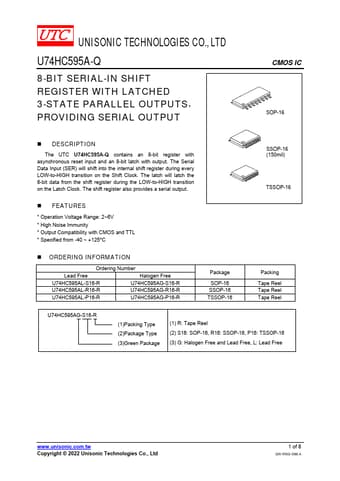

Preview of U74HC595A-Q PDF

Datasheet Details

Part number:

U74HC595A-Q

Manufacturer:

UTC

File Size:

258.59 KB

Description:

8-bit serial-in shift register.
UNISONIC TECHNOLOGIES CO., LTD U74HC595A-Q 8-BIT SERIAL-IN SHIFT REGISTER WITH LATCHED 3-STATE PARALLEL OUTPUTS， PROVIDING SERIAL OUTPUT CMOS IC SOP-.

U74HC595A-Q Features

* Operation Voltage Range: 2~6V

* High Noise Immunity

* Output Compatibility with CMOS and TTL

* Specified from -40 ~ +125°C SSOP-16 (150mil) TSSOP-16

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC595AL-S16-R U74HC595AG-S16-R U74HC595AL-R16-R U74HC59

U74HC595A-Q General Description

The UTC U74HC595A-Q contains an 8-bit register with asynchronous reset input and an 8-bit latch with output. The Serial Data Input (SER) will shift into the internal shift register during every LOW-to-HIGH transition on the Shift Clock. The latch will latch the 8-bit data from the shift register dur.
