U74HC573 Datasheet, Latches, Unisonic Technologies

U74HC573 Features

  • Latches
  • Operate from 2V to 6V
  • Max tPD of 57ns at 4.5 V
  • Typical VOL<0.17V at VCC=4.5V, TA=25°C
  • Typical VOH>4.3V at VCC=4.5V, TA=25°C DIP-20 TSSOP-20

PDF File Details

Part number:

U74HC573

Manufacturer:

Unisonic Technologies

File Size:

296.60kb

Download:

📄 Datasheet

Description:

Octal transparent d-type latches. The UTC U74HC573 is a octal transparent D-type latch with 3-state outputs, and it has 8 channels.

  • FEATURES
  • Operat

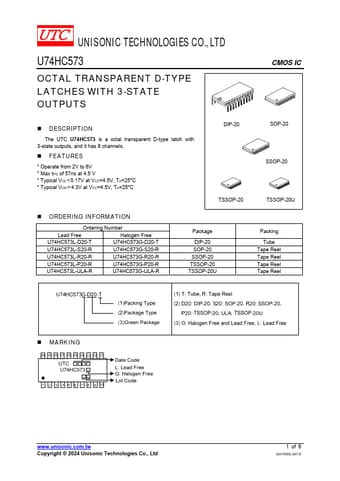

  • Datasheet Preview: U74HC573 📥 Download PDF (296.60kb)
    Page 2 of U74HC573 Page 3 of U74HC573
