U74HC574 Datasheet, Flip-flops, Unisonic Technologies

U74HC574 Features

• Flip-flops
• Operate from 2V to 6V
• Max tpd of 66ns at 4.5 V
• Typical VOL< 0.17V at VCC=4.5V, TA=25°C
• Typical VOH> 4.3V at VCC=4.5V, TA=25°C CMOS IC DIP-20 SOP

PDF File Details

Part number:

U74HC574

Manufacturer:

Unisonic Technologies

File Size:

257.85kb

Download:

📄 Datasheet

Description:

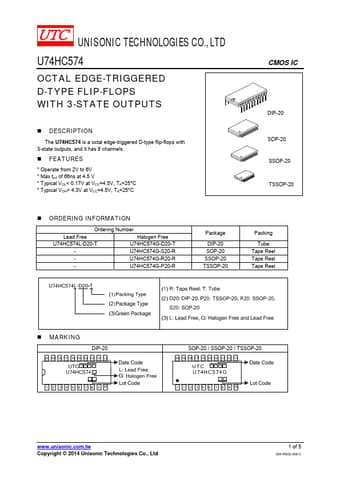

Octal d-type edge-triggerrd flip-flops. The U74HC574 is a octal edge-triggered D-type flip-flops with 3-state outputs, and it has 8 channels.

FEATURES

Op
