U74HC595A Datasheet - Unisonic Technologies

U74HC595A 8-BIT SERIAL-IN SHIFT REGISTER

The UTC U74HC595A contains an 8-bit register with asynchronous reset input and an 8-bit latch with output. The Serial Data Input (SER) will shift into the internal shift register during every LOW-to-HIGH transition on the Shift Clock. The latch will latch the 8-bit data from the shift register durin.

U74HC595A Features

* Operation Voltage Range: 2~6V

* High Noise Immunity

* Output Compatibility with CMOS and TTL

* Specified from -40 ~ +125°C

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC595AL-D16-T U74HC595AG-D16-T U74HC595AL-S16-R U74HC595AG-S16-R U74HC595AL-S16N-

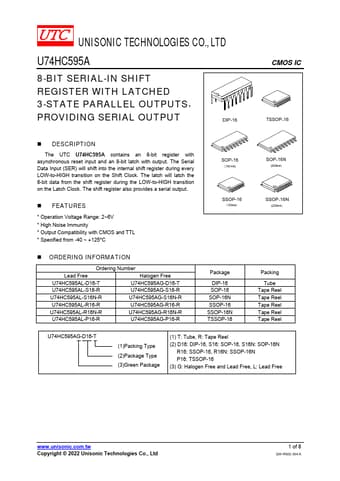

U74HC595A Datasheet (283.06 KB)

U74HC595A Datasheet Preview — Preview of U74HC595A PDF

Datasheet Details

Part number:

U74HC595A

Manufacturer:

Unisonic Technologies

File Size:

283.06 KB

Description:

8-bit serial-in shift register.
