U74HC594 Datasheet - UTC

U74HC594 8-BIT SERIAL-IN SHIFT REGISTER

The UTC U74HC594 contains an 8-bit serial-in parallel-out register. The Serial Data Input (SER) input will shift into the internal shift register during every LOW-to-HIGH transition on the ( SRCLR ) input. The storage register will storage the 8-bit data from the shift register during the LOW-to-HIG.

U74HC594 Features

* Wide supply voltage range from 2.0V to 6.0V

* Low static power consumption; ICC=8μA (Max.)

* 8 bit counter with register

* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC594L-S16-R U74HC594G-S16-R U74HC594L-P16-R U74HC594G-P16-R Package SOP-16 TSSOP-16 C

U74HC594-UTC.pdf

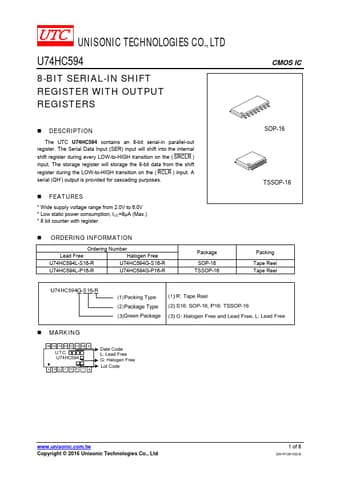

Preview of U74HC594 PDF
U74HC594 Datasheet Preview Page 2 U74HC594 Datasheet Preview Page 3

Datasheet Details

Part number:

U74HC594

Manufacturer:

UTC

File Size:

277.81 KB

Description:

8-bit serial-in shift register.
