U74HC595B - 8-BIT SERIAL-IN SHIFT REGISTER

U74HC595B Description

UNISONIC TECHNOLOGIES CO., LTD U74HC595B 8-BIT SERIAL-IN SHIFT REGISTER WITH LATCHED 3-STATE PARALLEL OUTPUTS， PROVIDING SERIAL OUTPUT * DESCRIPT.
The UTC U74HC595B contains an 8-bit register with asynchronous reset input and an 8-bit latch with output.

U74HC595B Features

* Operation Voltage Range: 2~6V
* High Noise Immunity
* Output Compatibility with CMOS and TTL
* Specified from -40 ~ +125°C
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC595BL-S16-R U74HC595BG-S16-R U74HC595BL-R16-R U74HC595BG-R16-R U74HC595BL-P16-R

📥 Download Datasheet

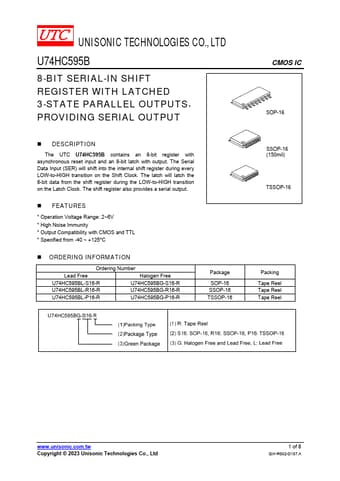

Preview of U74HC595B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U74HC595B
Manufacturer
UTC
File Size
276.61 KB
Datasheet
U74HC595B-UTC.pdf
Description
8-BIT SERIAL-IN SHIFT REGISTER
