U74HC541 - OCTAL BUFFERS AND LINE DRIVERS

U74HC541 Description

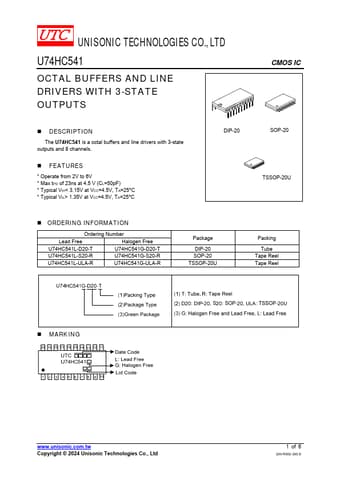

UNISONIC TECHNOLOGIES CO., LTD U74HC541 OCTAL BUFFERS AND LINE DRIVERS WITH 3-STATE OUTPUTS CMOS IC * .
The U74HC541 is a octal buffers and line drivers with 3-state outputs and 8 channels. FEATURES. Operate from 2V to 6V. Max tPD of 23ns.

U74HC541 Features

* Operate from 2V to 6V
* Max tPD of 23ns at 4.5 V (CL=50pF)
* Typical VIH< 3.15V at VCC=4.5V, TA=25°C
* Typical VIL> 1.35V at VCC=4.5V, TA=25°C DIP-20 SOP-20 TSSOP-20U
* ORDERING INFORMATION Ordering Number Lead Free Halogen Free U74HC541L-D20-T U74HC541G-D20-T U74HC54

📥 Download Datasheet

Preview of U74HC541 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
U74HC541
Manufacturer
Unisonic Technologies
File Size
262.82 KB
Datasheet
U74HC541-UnisonicTechnologies.pdf
Description
OCTAL BUFFERS AND LINE DRIVERS
