UTCMC3361BP, LOW VOLTAGE/POWER NARROW BAND FM IF

UTC MC3361BP LINEAR INTEGRATED CIRCUIT LOW VOLTAGE/POWER NARROW BAND FM IF .
The UTC MC3361BP is designed for use in FM dual conversion communication.

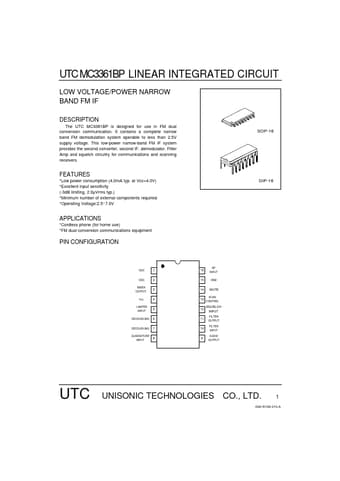

datasheet Preview Page 1 from Datasheet4u.com

UTCMC3361BP_UnisonicTechnologies.pdf

UTCMC3361BP Datasheet Preview — Preview of UTCMC3361BP PDF

Datasheet Details

Part number:

UTCMC3361BP

Manufacturer:

Unisonic Technologies

File Size:

30.12 KB

Description:

LOW VOLTAGE/POWER NARROW BAND FM IF

Features

* Low power consumption (4.0mA typ. at Vcc=4.0V)
* Excellent input sensitivity (-3dB limiting, 2.0µVrms typ. )
* Minimum number of external components required.

Applications

* Cordless phone (for home use)
* FM dual conversion communications equipment PIN CONFIGURATION OSC OSC MIXER OUTPUT Vcc LIMITER INPUT DECOUPLING DECOUPLING QUADRATURE INPUT 1 2 3 4 5 6 7 8 16 15 14 RF INPUT GND MUTE SCAN 13 CONTROL 12 11 10 9 SQUELCH INPUT FILTER OUTPUT FILTER INPUT
