UTCMC34072 - HIGH SLEW RATE/ WIDE BANDWIDTH/ SINGLE SUPPLY OPERATIONAL AMPLIFIERS

Unisonic Technologies

📥 Download Datasheet

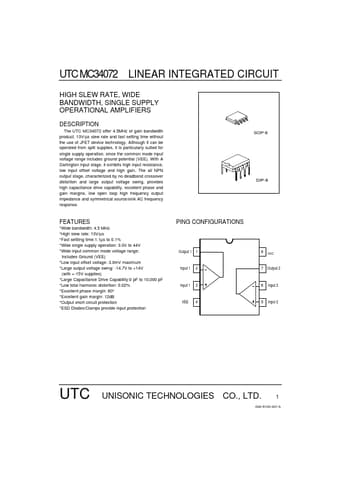

UTCMC34072 Datasheet Preview — Preview of UTCMC34072 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: UTCMC34072
Manufacturer: Unisonic Technologies
File Size: 86.77 KB
Datasheet: UTCMC34072_UnisonicTechnologies.pdf
Description: HIGH SLEW RATE/ WIDE BANDWIDTH/ SINGLE SUPPLY OPERATIONAL AMPLIFIERS

UTCMC34072 Product details

Description

The UTC MC34072 offer 4.5MHz of gain bandwidth product, 13V/µs slew rate and fast setting time without the use of JFET device technology.

Features

Wide bandwidth: 4.5 MHz.
High slew rate: 13V/µs.
Fast settling time:1.1µs to 0.1%.
Wide single supply operation: 3.0V to 44V.
Wide input common mode voltage range: Includes Ground (VEE).
Low input offset voltage: 3.0mV maximum.
Large output voltage swing: -14.7V to +14V (with +-15V supplies).
Large Capacitance Drive Capability:0 pF to 10,000 pF.
Low total harmonic distortion: 0.02%.
Excellent phase margin: 60°.
Excellent gain margin: 12dB.
Output.
