UTCMC34119 Datasheet - Unisonic Technologies

LOW POWER AUDIO AMPLIFIER

UTCMC34119 Features

* Wide operating supply voltage: Vcc=2V~16V

* Low quiescent supply current( Icc=2.7mA, typ)

* Medium output power( Po=250mW at Vcc=6V, RL=32ohm, THD=10%)

* Load impedance range(8 to 100ohm)

* Low distortion

* Mute function(Icc=65µA, typ)

* Minimum number of external parts requir

UTCMC34119 General Description

The UTC MC34119 is a low power audio amplifier integrated circuit, intended for the telephone applications, such as in speakerphones. It provides differential speaker outputs to maximize output swing at low supply voltages. Coupling capacitor to the speaker is not required. Open loop gain is 80dB, a.

UTCMC34119 Datasheet (86.12 KB)

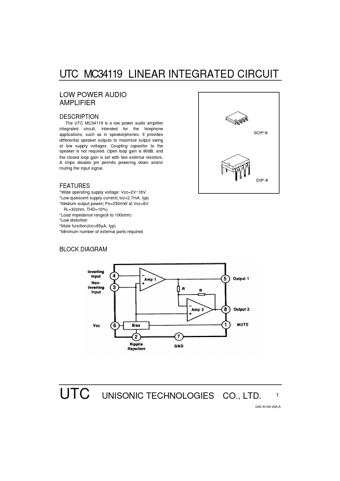

UTCMC34119 Datasheet Preview — Preview of UTCMC34119 PDF

Datasheet Details

Part number:

UTCMC34119

Manufacturer:

Unisonic Technologies

File Size:

86.12 KB

Description:

Low power audio amplifier.
