UTCTL1451

DUAL PULSE-WIDTH-MODULATION CONTROL CIRCUITS

UTCTL1451 Features

* Complete PWM Power control Circuitry

* Completely Synchronized Operation

* Internal Undervoltage Lockout Protection

* Wide Supply Voltage Range

* Internal Short-Circuit Protection

* Oscillator Frequency … 500kHz Max

* Variable Dead Time Provides Control Over Total Range

* I

UTCTL1451 General Description

The UTC TL1451 incorporates on a single monolithic chip all the functions required in the construction of two pulsewidth-modulation (PWM) control circuits. Designed primarily for power supply control, the TL1451 contains an on-chip 2.5V regulator, two error amplifiers, an adjustable oscillator, two .

UTCTL1451 Datasheet (127.28 KB)

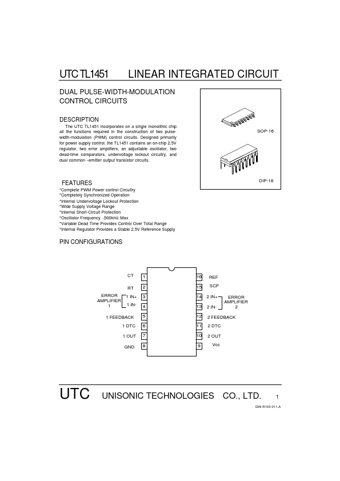

Preview of UTCTL1451 PDF

Datasheet Details

Part number:

UTCTL1451

Manufacturer:

Unisonic Technologies

File Size:

127.28 KB

Description:

Dual pulse-width-modulation control circuits.
