UTCTL494

VOLTAGE MODE PWM CONTROL CIRCUIT

UTCTL494 Features

* Complete PWM power control circuitry

* Uncommitted outputs for 200 mA sink or source current

* Output control selects single ended or push pull operation

* Internal circuitry prohibits double pulses over total range

* Easy synchronization DIP-16 ABSOLUTE MAXIMUM RATINGS(Unless oth

UTCTL494 General Description

The UTC TL494 incorporates all the functions required in the construction of a pulse-width modulation switching circuit. Designed primarily for switching power supply control or DCDC convectors, it offers the systems engineer the flexibility to tailor control circuitry to its own application. SOP-1.

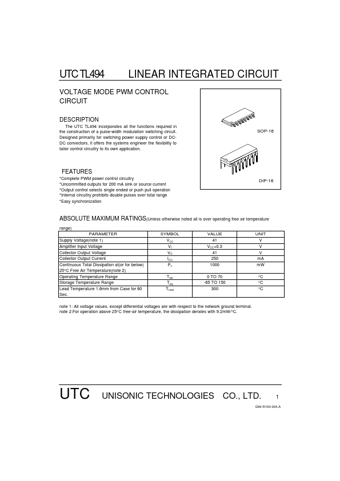

UTCTL494 Datasheet (54.51 KB)

Preview of UTCTL494 PDF

Datasheet Details

Part number:

UTCTL494

Manufacturer:

Unisonic Technologies

File Size:

54.51 KB

Description:

Voltage mode pwm control circuit.
