CHA2266 Datasheet, Amplifier, United Monolithic Semiconductors

CHA2266 Features

  • Amplifier Broadband performance 12.5
      –17GHz 2.5dB noise figure 34dB gain, +/- 0.5dB gain flatness Low DC power consumption:130mA Saturated output power : 16dBm Chip size 2.32 x 1.0

PDF File Details

Part number:

CHA2266

Manufacturer:

United Monolithic Semiconductors

File Size:

145.16kb

Download:

📄 Datasheet

Description:

12.5-17ghz low-noise driver amplifier. The CHA2266 is a self biased, low-noise high gain driver amplifier. It is designed mainly for VSAT applications in Kuband. The backsi

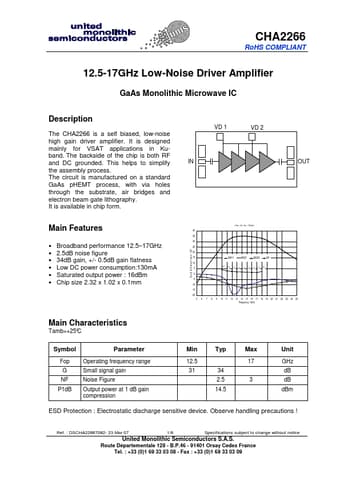

Datasheet Preview: CHA2266 📥 Download PDF (145.16kb)
Page 2 of CHA2266 Page 3 of CHA2266

CHA2266 Application

  • Applications in Kuband. The backside of the chip is both RF and DC grounded. This helps to simplify the assembly process. The circuit is manufacture
