CHA2266-99F Datasheet, Amplifier, United Monolithic Semiconductors

CHA2266-99F Features

• Amplifier
• Broadband performance 12.5
    –17GHz
• 2.5dB noise figure
• 34dB gain, +/- 0.5dB gain flatness
• Low DC power consumption:130mA
• S

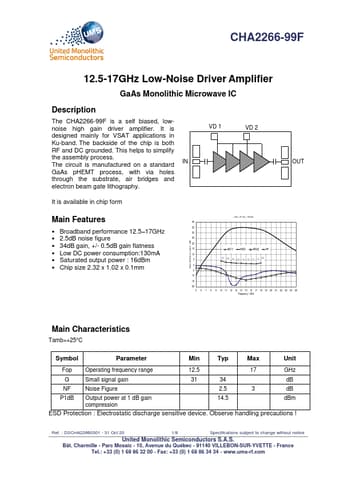

PDF File Details

Part number:

CHA2266-99F

Manufacturer:

United Monolithic Semiconductors

File Size:

298.76kb

Download:

📄 Datasheet

Description:

Low-noise driver amplifier. The CHA2266-99F is a self biased, lownoise high gain driver amplifier. It is VD 1 VD 2 designed mainly for VSAT applications in

CHA2266-99F Application

• Applications in Ku-band. The backside of the chip is both RF and DC grounded. This helps to simplify the assembly process. The circuit is manufac
