UJ4C075033K4S - SiC FET

UnitedSiC

📥 Download Datasheet

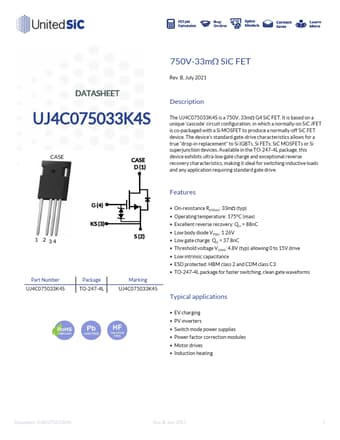

UJ4C075033K4S Datasheet Preview — Preview of UJ4C075033K4S PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: UJ4C075033K4S
Manufacturer: UnitedSiC
File Size: 902.88 KB
Datasheet: UJ4C075033K4S-UnitedSiC.pdf
Description: SiC FET

UJ4C075033K4S Product details

Description

The UJ4C075033K4S is a 750V, 33mW G4 SiC FET.

Features

S (2) Marking UJ4C075033K4S w On-resistance RDS(on): 33mW (typ) w Operating temperature: 175°C (max) w Excellent reverse recovery: Qrr = 88nC w Low body diode VFSD: 1.26V w Low gate charge: QG = 37.8nC w Threshold voltage VG(th): 4.8V (typ) allowing 0 to 15V drive w Low intrinsic capacitance w ESD protected: HBM class 2 and CDM class C3 w TO-247-4L package for faster switching, clean gate waveforms Typical.
