UJ4C075033B7S

750V SiC Cascode JFET

Qorvo

UJ4C075033B7S Features

* w On-resistance RDS(on): 33mW (typ) w Operating temperature: 175°C (max) w Excellent reverse recovery: Qrr = 62nC w Low body diode VFSD: 1.26V w Low gate charge: QG = 37.8nC w Threshold voltage VG(th): 4.8V (typ) allowing 0 to 15V drive w Low intrinsic capacitance w ESD protected: HBM class 2 and CD

UJ4C075033B7S General Description

The UJ4C075033B7S is a 750V, 33mW G4 SiC FET. It is based on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device. The device’s standard gate-drive characteristics allows for a true “drop-in replacement” to.

UJ4C075033B7S Datasheet (0.98 MB)

UJ4C075033B7S Datasheet Preview — Preview of UJ4C075033B7S PDF

Datasheet Details

Part number:

UJ4C075033B7S

Manufacturer:

Qorvo

File Size:

0.98 MB

Description:

750v sic cascode jfet.

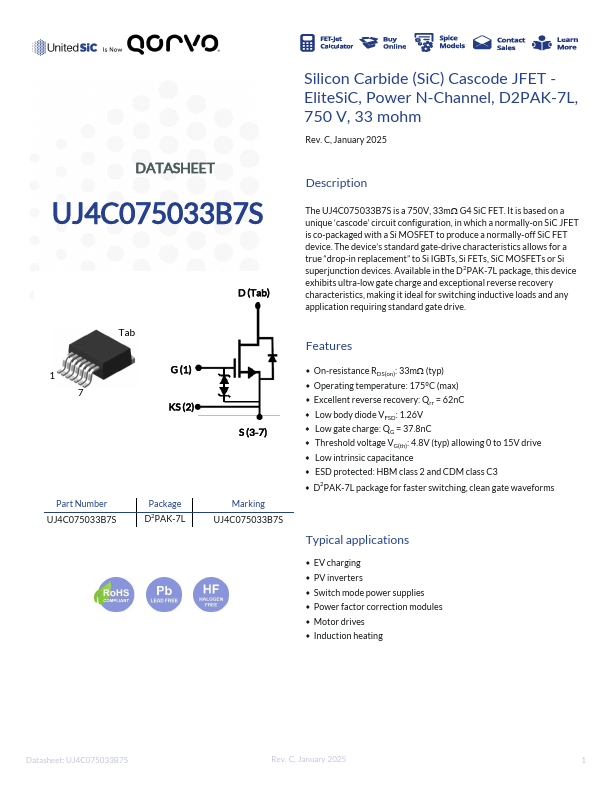

DATASHEET UJ4C075033B7S 1 7 Tab G (1) KS (2) D (Tab) S (3-7) Part Number UJ4C075033B7S Package D2PAK-7L Marking UJ4C075033B7S Silicon Carbide (.
