UJ4SC075005L8S

SiC JFET

UJ4SC075005L8S Features

* w On-resistance RDS(on): 5.4mW (typ) w Operating temperature: 175°C (max) w Excellent reverse recovery: Qrr = 440nC w Low body diode VFSD: 1.03V w Low gate charge: QG =164nC w Threshold voltage VG(th): 4.7V (typ) allowing 0 to 15V drive w Low intrinsic capacitance w ESD protected, HBM class 2 w MO-2

UJ4SC075005L8S General Description

The UJ4SC075005L8S is a 750V, 5.4mΩ G4 SiC FET. It is based on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device. The device’s standard gate-drive characteristics allows use of off-the-shelf gate drivers.

UJ4SC075005L8S Datasheet (835.45 KB)

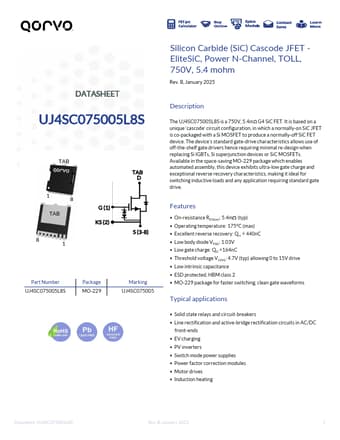

Preview of UJ4SC075005L8S PDF

Datasheet Details

Part number:

UJ4SC075005L8S

Manufacturer:

Qorvo

File Size:

835.45 KB

Description:

Sic jfet.
DATASHEET UJ4SC075005L8S TAB 1 8 TAB 8 1 G (1) KS (2) TAB D S (3-8) Part Number UJ4SC075005L8S Package MO-229 Marking UJ4SC075005 Silicon C.
