UJ4SC075009K4S - 750V SiC FET

UnitedSiC

📥 Download Datasheet

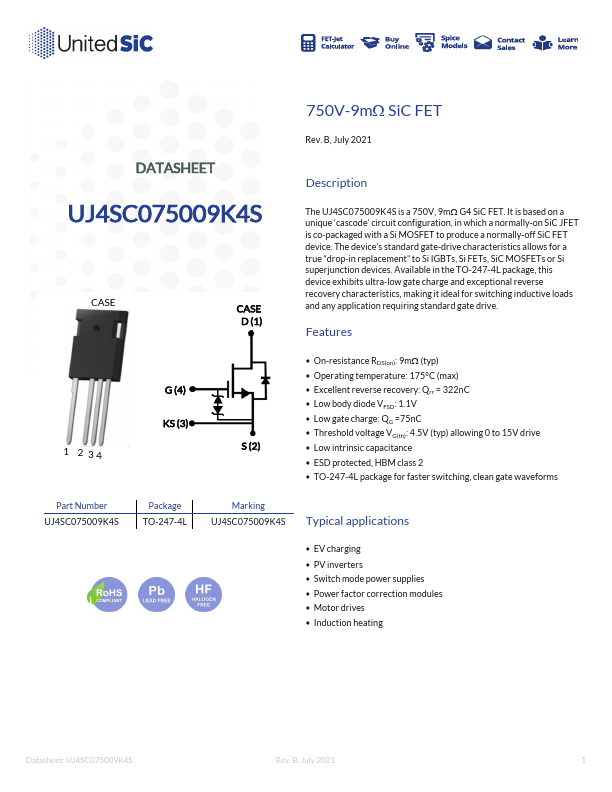

UJ4SC075009K4S Datasheet Preview — Preview of UJ4SC075009K4S PDF

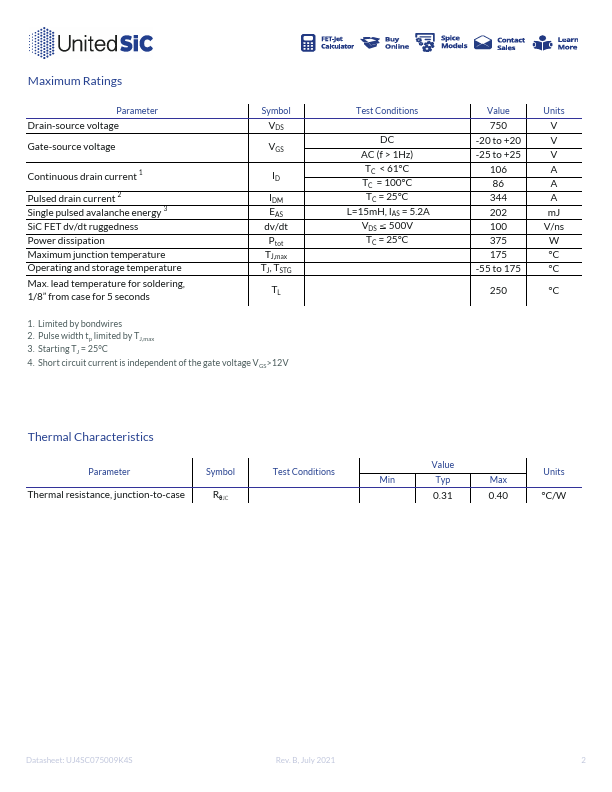

datasheet Preview Page 2

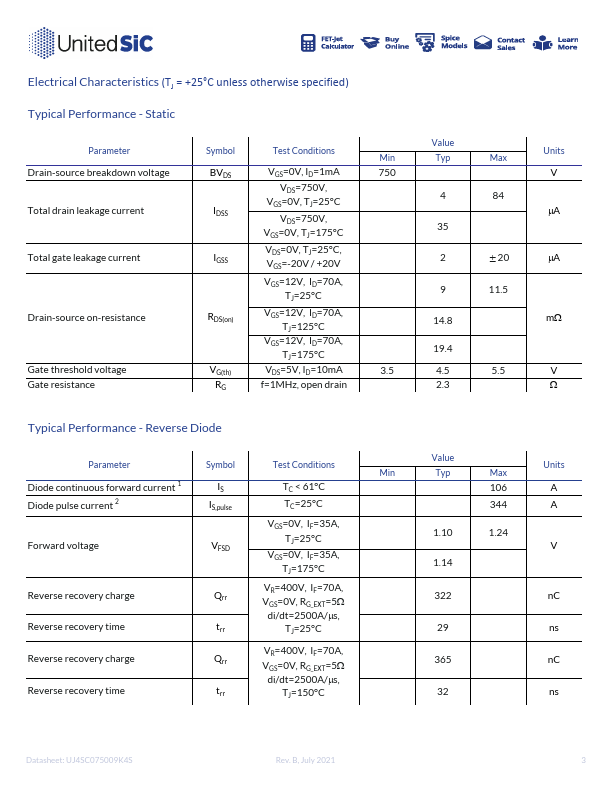

datasheet Preview Page 3

Datasheet Details

Part number	UJ4SC075009K4S
Manufacturer	UnitedSiC
File Size	742.08 KB
Description	750V SiC FET
Datasheet	UJ4SC075009K4S-UnitedSiC.pdf

UJ4SC075009K4S Product details

Description

The UJ4SC075009K4S is a 750V, 9mW G4 SiC FET.

Features

1 2 34 G (4) KS (3) S (2) w On-resistance RDS(on): 9mW (typ) w Operating temperature: 175°C (max) w Excellent reverse recovery: Qrr = 322nC w Low body diode VFSD: 1.1V w Low gate charge: QG =75nC w Threshold voltage VG(th): 4.5V (typ) allowing 0 to 15V drive w Low intrinsic capacitance w ESD protected, HBM class 2 w TO-247-4L package for faster switching, clean gate waveforms Part Number UJ4SC075009K4S Package TO-247-4L Marking UJ4SC075009K4S Typical.
