UJ4C075060L8S Datasheet - Qorvo

Silicon Carbide Cascode JFET

UJ4C075060L8S Features

* w On-resistance RDS(on): 58mW (typ) w Operating temperature: 175°C (max) w Excellent reverse recovery: Qrr = 70nC w Low body diode VFSD: 1.31V w Low gate charge: QG = 37.8nC w Threshold voltage VG(th): 4.8V (typ) allowing 0 to 15V drive w Low intrinsic capacitance w ESD protected, HBM class 2 w MO-2

UJ4C075060L8S General Description

The UJ4C075060L8S is a 750V, 58mW G4 SiC FET. It is based on a unique ‘cascode’ circuit configuration, in which a normally-on SiC JFET is co-packaged with a Si MOSFET to produce a normally-off SiC FET device. The device’s standard gate-drive characteristics allows use of off-the-shelf gate drivers h.

UJ4C075060L8S Datasheet (1.16 MB)

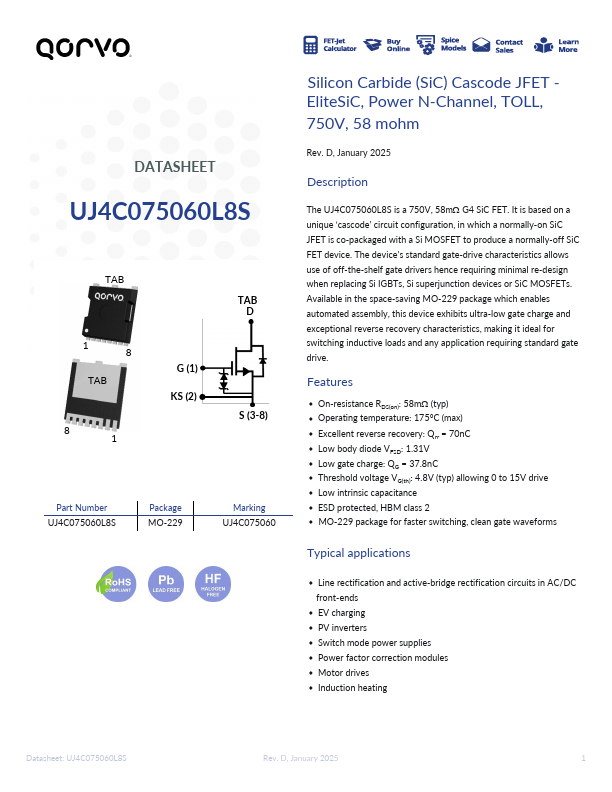

Preview of UJ4C075060L8S PDF

Datasheet Details

Part number:

UJ4C075060L8S

Manufacturer:

Qorvo

File Size:

1.16 MB

Description:

Silicon carbide cascode jfet.
DATASHEET UJ4C075060L8S TAB 1 8 TAB 8 1 G (1) KS (2) TAB D S (3-8) Part Number UJ4C075060L8S Package MO-229 Marking UJ4C075060 Silicon Car.

📁 Related Datasheet

UJ4C075060K3S SiC Cascode JFET (onsemi)

UJ4C075018K3S SiC Cascode JFET (UnitedSiC)

UJ4C075018K4S SiC Cascode JFET (UnitedSiC)

UJ4C075018K4S 750V SiC Cascode JFET (onsemi)

UJ4C075023B7S 750V SiC Cascode JFET (UnitedSiC)

UJ4C075023K3S SiC Cascode JFET (UnitedSiC)

UJ4C075023K4S SiC Cascode JFET (UnitedSiC)

UJ4C075023L8S Silicon Carbide Cascode JFET (UnitedSiC)

UJ4C075033B7S 750V SiC Cascode JFET (Qorvo)

UJ4C075033K3S SiC FET (UnitedSiC)

TAGS

UJ4C075060L8S Silicon Carbide Cascode JFET Qorvo

Image Gallery

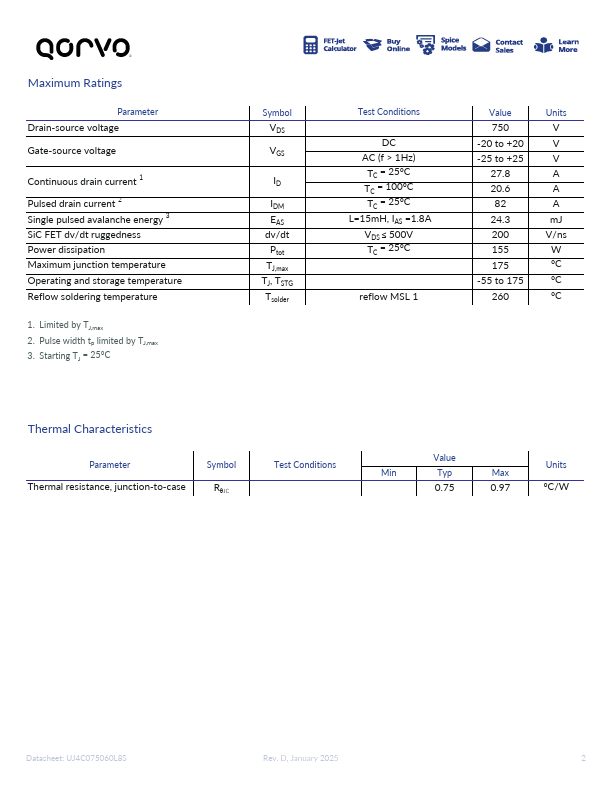

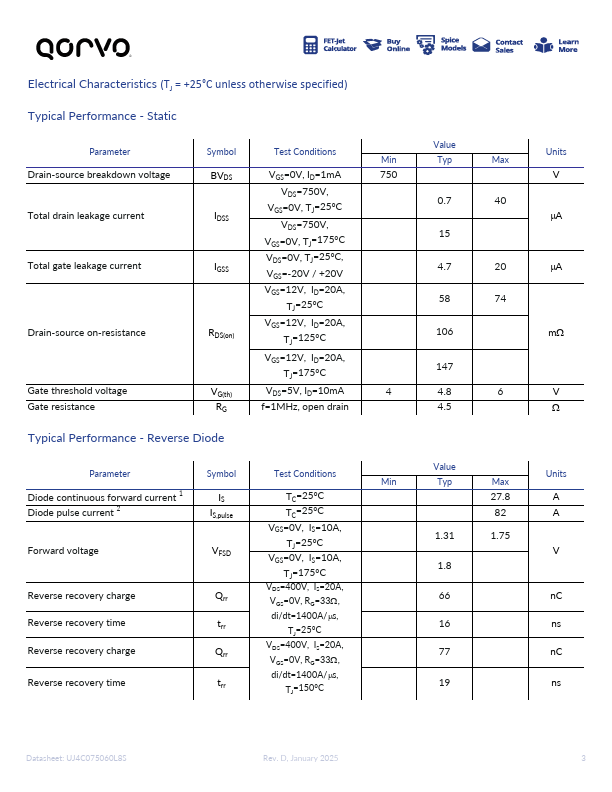

UJ4C075060L8S Datasheet Preview Page 2 UJ4C075060L8S Datasheet Preview Page 3
