NDS9948-NL

Dual P-Channel MOSFET

VBsemi

Image	Manufacturer	B2B MPN	Description	Distributor	Stock	Quantity	Price	Buy Now
	onsemi	NDS9948	MOSFETs Dual PCh PowerTrench	Mouser Electronics	7709	1 units	$1.06	🛒 Buy Now

NDS9948-NL Datasheet (255.04 KB)

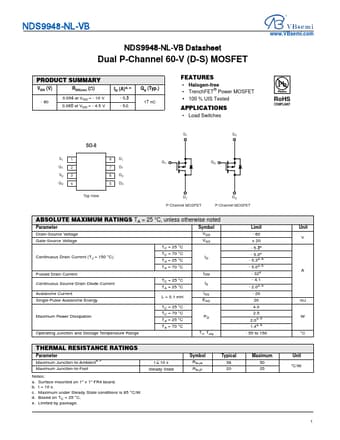

NDS9948-NL Datasheet Preview — Preview of NDS9948-NL PDF Datasheet

Datasheet Details

Part number:

NDS9948-NL

Manufacturer:

VBsemi

File Size:

255.04 KB

Description:

Dual p-channel mosfet.
NDS9948-NL-VB NDS9948-NL-VB Datasheet Dual P-Channel 6 0-V (D-S) MOSFET PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 60 0.054 at VGS = - 10 V 0.060 at.

NDS9948-NL Features

* Halogen-free

* TrenchFET® Power MOSFET

* 100 % UIS Tested APPLICATIONS

* Load Switches www.VBsemi.com RoHS COMPLIANT S1 1 G1 2 S2 3 G2 4 SO-8 Top View 8 D1 7 D1 6 D2 5 D2 S1 S2 G1 G2 D1 P-Channel MOSFET D2 P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25
