NDS9948

Dual P-Channel MOSFET

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi NDS9948 MOSFET 2P-CH 60V 2.3A 8SOIC DigiKey 7500 17500 units
$0.23

NDS9948 Datasheet (342.89 KB)

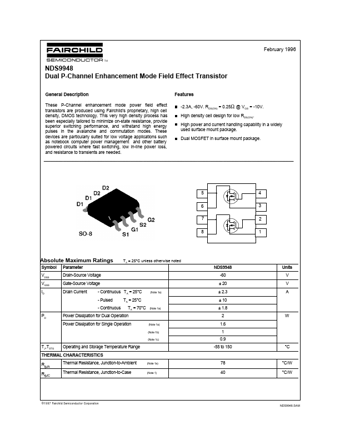

Preview of NDS9948 PDF

Datasheet Details

Part number:

NDS9948

Manufacturer:

Fairchild

File Size:

342.89 KB

Description:

Dual p-channel mosfet.

NDS9948 Features

* -2.3A, -60V. RDS(ON) = 0.25Ω @ VGS = -10V. High density cell design for low RDS(ON). High power and current handling capability in a widely used surface mount package. Dual MOSFET in surface mount package. ______________________________________________________________________________ 5 4 3 2 1 6

NDS9948 General Description

These P-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology. This very high density process has been especially tailored to minimize on-state resistance, provide superior switching performance, and withstand high ener.
