NDS9933A Datasheet, Mosfet, Fairchild

NDS9933A Features

  • Mosfet
  • -2.8 A, -20 V. RDS(on) = 0.14 Ω @ VGS = -4.5 V RDS(on) = 0.19 Ω @ VGS = -2.7 V RDS(on) = 0.20 Ω @ VGS = -2.5 V.
  • High density cell design for extremely low RDS(on).

PDF File Details

Part number:

NDS9933A

Manufacturer:

Fairchild

File Size:

191.77kb

Download:

📄 Datasheet

Description:

Dual p-channel mosfet. This P-Channel enhancement mode power field effect transistor is produced using Fairchild’s proprietary, high cell density, DMOS tech

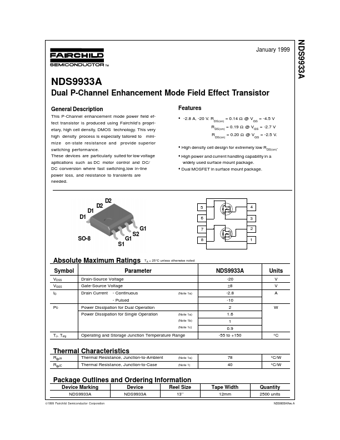

Datasheet Preview: NDS9933A 📥 Download PDF (191.77kb)
Page 2 of NDS9933A Page 3 of NDS9933A
