NDS96P - 1M x 16 bit Synchronous DRAM

Datasheet Details

Part number	NDS96P
Manufacturer	INSIGNIS
File Size	1.98 MB
Description	1M x 16 bit Synchronous DRAM
Datasheet	NDS96P Datasheet
Additional preview pages of the NDS96P datasheet.

📁 Similar Datasheet

NDS9400A - Single P-Channel MOSFET (Fairchild)
NDS9405 - single P-Channel MOSFET (ETC)
NDS9407 - Single P-Channel MOSFET (Fairchild)
NDS9407 - P-Channel MOSFET (ON Semiconductor)
NDS9410A - Single N-channel MOSFET (Fairchild)
NDS9410S - Single N-channel MOSFET (Fairchild)
NDS9430 - 30V P-Channel PowerTrench MOSFET (Fairchild)
NDS9430A - Single P-Channel MOSFET (Fairchild)
NDS9435A - 30V P-Channel MOSFET (Fairchild)
NDS9925A - Dual N-Channel MOSFET (Fairchild)

Other Datasheets by INSIGNIS

NDS36P - 16M x 16 bit Synchronous DRAM
NDS63P - 2M x 32 bit Synchronous DRAM
NDS66P - 4M x 16 bit Synchronous DRAM
NDS73P - 4M x 32 bit Synchronous DRAM
NDS76P - 8M x 16 bit Synchronous DRAM

Full PDF Text Transcription

Click to expand full text

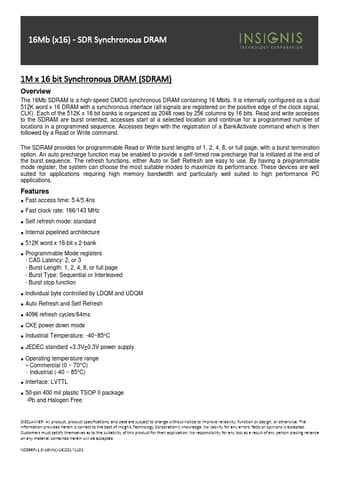

16Mb (x16) - SDR Synchronous DRAM 1M x 16 bit Synchronous DRAM (SDRAM) Overview The 16Mb SDRAM is a high-speed CMOS synchronous DRAM containing 16 Mbits. It is internally configured as a dual 512K word x 16 DRAM with a synchronous interface (all signals are registered on the positive edge of the clock signal, CLK). Each of the 512K x 16 bit banks is organized as 2048 rows by 256 columns by 16 bits. Read and write accesses to the SDRAM are burst oriented; accesses start at a selected location and continue for a programmed number of locations in a programmed sequence. Accesses begin with the registration of a BankActivate command which is then followed by a Read or Write command.
