NDS9410S - Single N-channel MOSFET

Datasheet Summary

Description

SO-8 N-Channel enhancement mode power field effect transistors are produced using Fairchild's proprietary, high cell density, DMOS technology.

This very high density process is especially tailored to minimize on-state resistance and provide superior switching performance.

Features

  • 7.0 A, 30 V. RDS(ON) = 0.03 Ω @ VGS = 10 V. High density cell design for extremely low RDS(ON). High power and current handling capability in a widely used surface mount package. ____________________________________________________________________________________________ 5 6 7 8 4 3 2 1.

📥 Download Datasheet

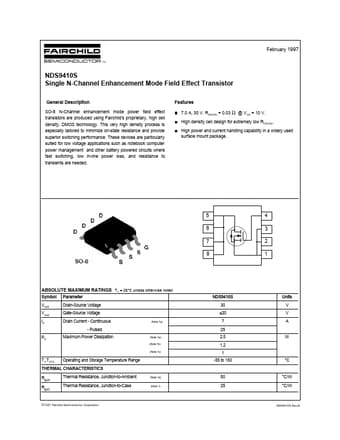

Datasheet preview – NDS9410S
