NDS9430 - 30V P-Channel PowerTrench MOSFET

Datasheet Summary

Description

This P-Channel MOSFET is a rugged gate version of Fairchild Semiconductor’s advanced PowerTrench process.

20V).

Features

  • 5.3 A,.
  • 30 V RDS(ON) = 60 mΩ @ VGS =.
  • 10 V RDS(ON) =100 mΩ @ VGS =.
  • 4.5 V.
  • Low gate charge.
  • Fast switching speed.
  • High performance trench technology for extremely low RDS(ON).
  • High power and current handling capability.

📥 Download Datasheet

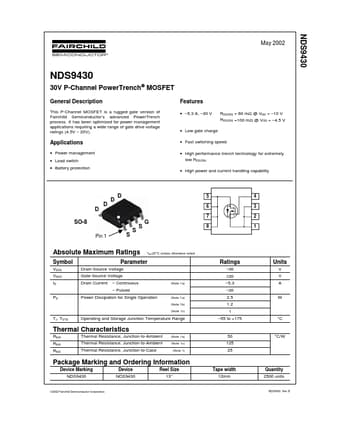

Datasheet preview – NDS9430

Datasheet Details

Part number NDS9430
Manufacturer Fairchild
File Size 139.04 KB
Description 30V P-Channel PowerTrench MOSFET
Datasheet download datasheet NDS9430 Datasheet
