NDS9435A - 30V P-Channel MOSFET

Datasheet Summary

Description

This P-Channel MOSFET is a rugged gate version of Fairchild Semiconductor’s advanced PowerTrench process.

25V).

Power management Load switch

Features

  • 5.3 A,.
  • 30 V RDS(ON) = 50 mΩ @ VGS =.
  • 10 V RDS(ON) = 80 mΩ @ VGS =.
  • 4.5 V.
  • Low gate charge.
  • Fast switching speed.
  • High performance trench technology for extremely low RDS(ON).
  • High power and current handling capability DDDD DD DD SO-8 Pin 1 SO-8 SS SS SS GG Absolute Maximum Ratings TA=25oC unless otherwise noted Symbol VDSS VGSS ID PD Parameter Drain-Source Voltage Gate-Source Voltage Drain Current.

📥 Download Datasheet

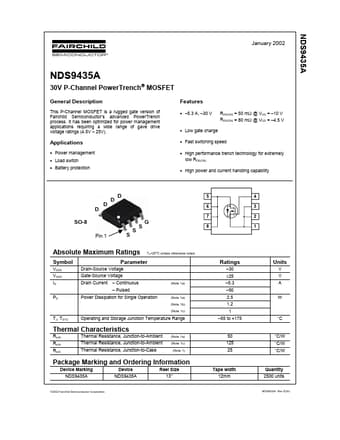

Datasheet preview – NDS9435A
