NDS9410A - Single N-channel MOSFET

Datasheet Summary

Description

This N-Channel Logic Level MOSFET is produced using Fairchild Semiconductor’s advanced PowerTrench process that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance.

Features

  • 7.3 A, 30 V. RDS(ON) = 28 mΩ @ VGS = 10 V RDS(ON) = 42 mΩ @ VGS = 4.5 V.
  • High performance trench technology for extremely low RDS(ON).
  • High power and current handling capability in a widely used surface mount package. D D D D 5 6 4 3 2 1 SO-8 S S S G 7 8 Absolute Maximum Ratings Symbol VDSS VGSS ID PD Drain-Source Voltage Gate-Source Voltage Drain Current.
  • Continuous.
  • Pulsed TA=25 C unless otherwise noted o Parameter Ratings 30 ±20 (No.

📥 Download Datasheet

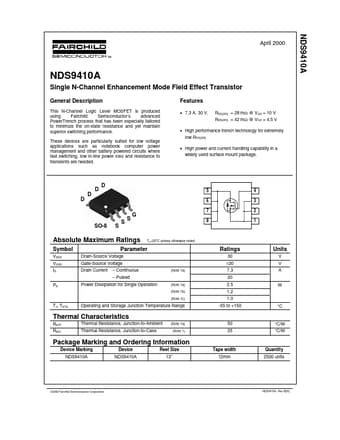

Datasheet preview – NDS9410A
