P2003EV8, P-Channel 30V MOSFET

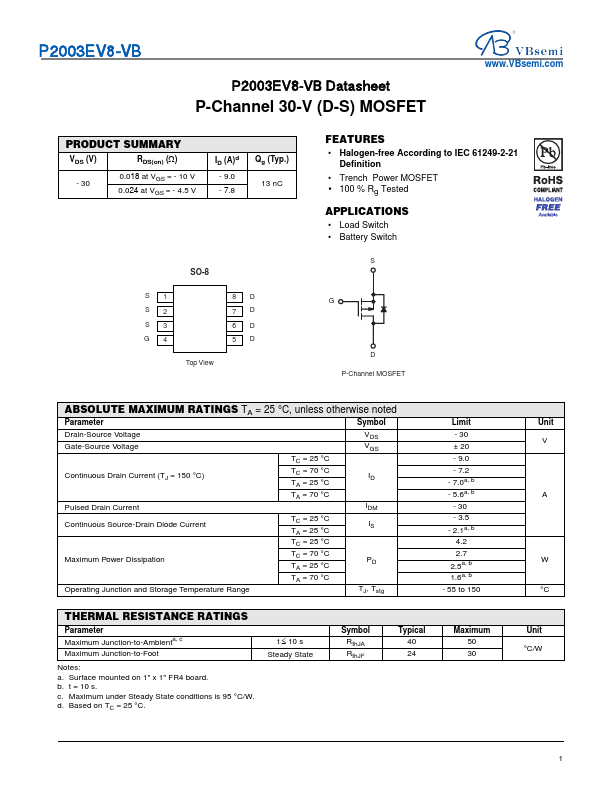

P2003EV8-VB P2003EV8-VB Datasheet P-Channel 30-V (D-S) MOSFET www.VBsemi.com PRODUCT SUMMARY VDS (V) RDS(on) (Ω) - 30 0.018 at VGS = - 10 V 0..

datasheet Preview Page 1 from Datasheet4u.com

P2003EV8-VBsemi.pdf

P2003EV8 Datasheet Preview — Preview of P2003EV8 PDF

Datasheet Details

Part number:

P2003EV8

Manufacturer:

VBsemi

File Size:

192.36 KB

Description:

P-Channel 30V MOSFET

Features

* Halogen-free According to IEC 61249-2-21 Definition
* Trench Power MOSFET

Applications

* Load Switch
* Battery Switch S G D P-Channel MOSFET ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted Parameter Symbol Drain-Source Voltage VDS Gate-Source Voltage VGS TC = 25 °C Continuous Drain Current (TJ = 150 °C) TC = 70 °C TA = 25 °C ID Pulsed Drain Curr
