IRFIZ24G

Power MOSFET

Vishay

IRFIZ24G Features

* Isolated Package

* High Voltage Isolation = 2.5 kVRMS (t = 60 s; Available f = 60 Hz) RoHS

* Sink to Lead Creepage Distance = 4.8 mm COMPLIANT

* 175 °C Operating Temperature

* Dynamic dV/dt Rating

* Low Thermal Resistance

* Le

IRFIZ24G General Description

Third generation Power MOSFETs from Vishay provide the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 FULLPAK eliminates the need for additional insulating hardware in commercial-industrial applications. The moldin.

IRFIZ24G Datasheet (1.55 MB)

Rating: 1 ★ (3 votes)

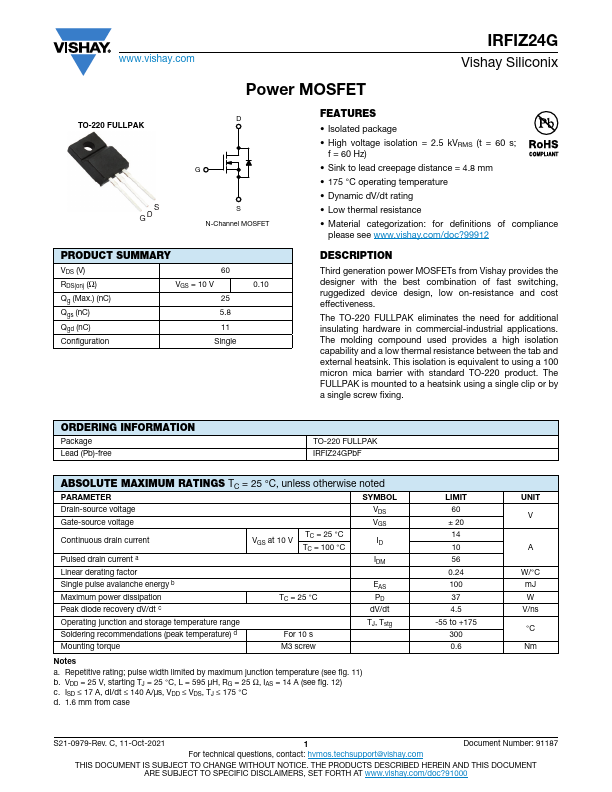

IRFIZ24G Datasheet Preview — Preview of IRFIZ24G PDF

Datasheet Details

Part number:

IRFIZ24G

Manufacturer:

Vishay ↗

File Size:

1.55 MB

Description:

Power mosfet.
Power MOSFET IRFIZ24G, SiHFIZ24G Vishay Siliconix PRODUCT SUMMARY VDS (V) RDS(on) (Ω) Qg (Max.) (nC) Qgs (nC) Qgd (nC) Configuration 60 VGS = 10 V.
