SUP70030E N-Channel 100V MOSFET

Vishay

Description

www.vishay.com SUP70030E Vishay Siliconix N-Channel 100 V (D-S) MOSFET TO-220AB Top View S D G PRODUCT SUMMARY VDS (V) RDS(on) max.() at VGS =.

📥 Download Datasheet

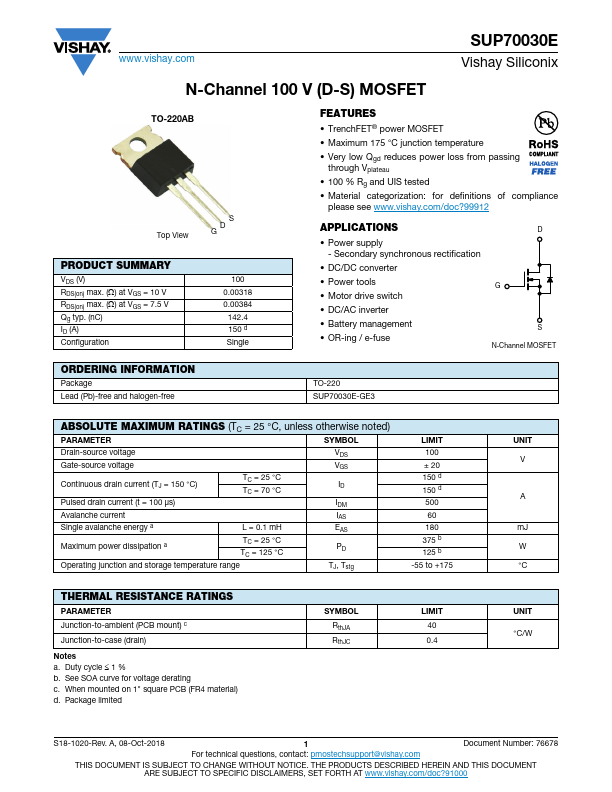

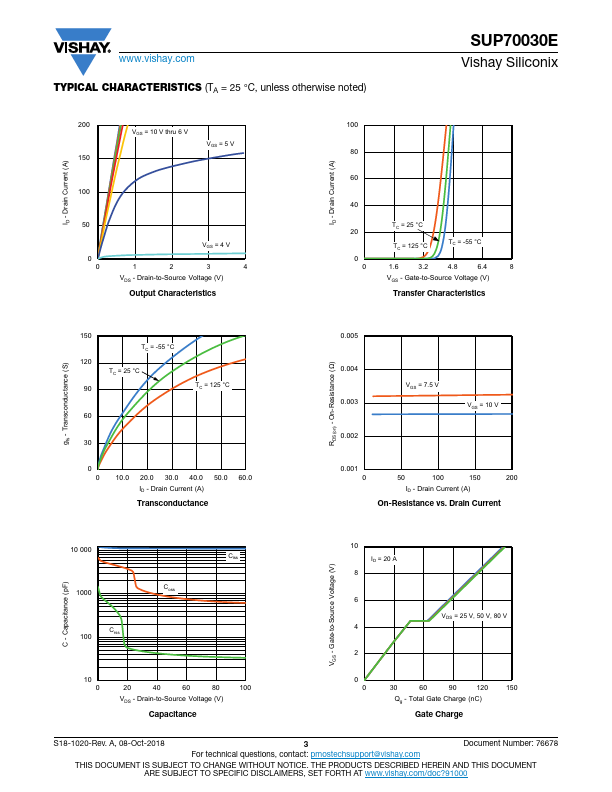

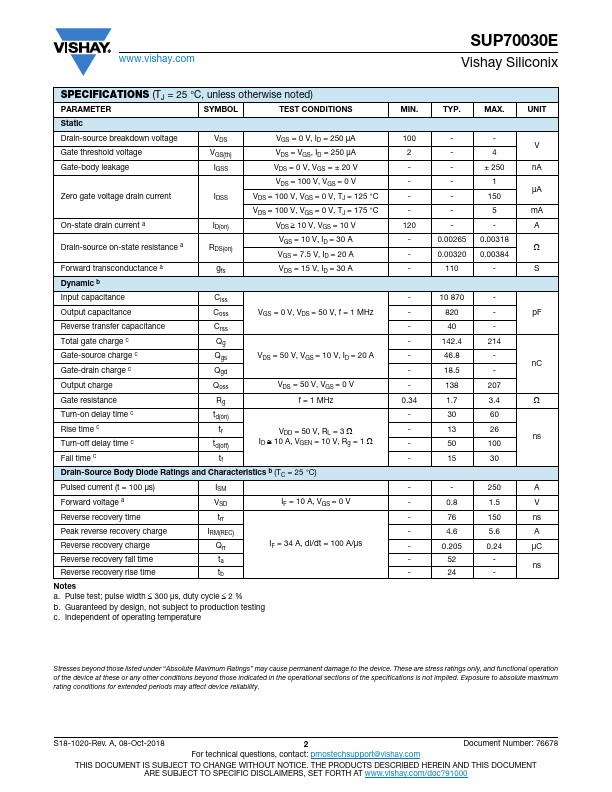

SUP70030E Datasheet Preview — Preview of SUP70030E PDF

Datasheet Specifications

Part number: SUP70030E
Manufacturer: Vishay ↗
File Size: 153.92 KB
Datasheet: SUP70030E-Vishay.pdf
Description: N-Channel 100V MOSFET

Features

* TrenchFET® power MOSFET
* Maximum 175 °C junction temperature
* Very low Qgd reduces power loss from passing through Vplateau
* 100 % Rg and UIS tested

Applications

* Power supply - Secondary synchronous rectification
* DC/DC converter
* Power tools
* Motor drive switch
* DC/AC inverter
* Battery management
* OR-ing / e-fuse D G S N-Channel MOSFET ORDERING INFORMATION Package Lead (Pb)-free and halogen-f
