Si2387DS P-Channel 80V MOSFET

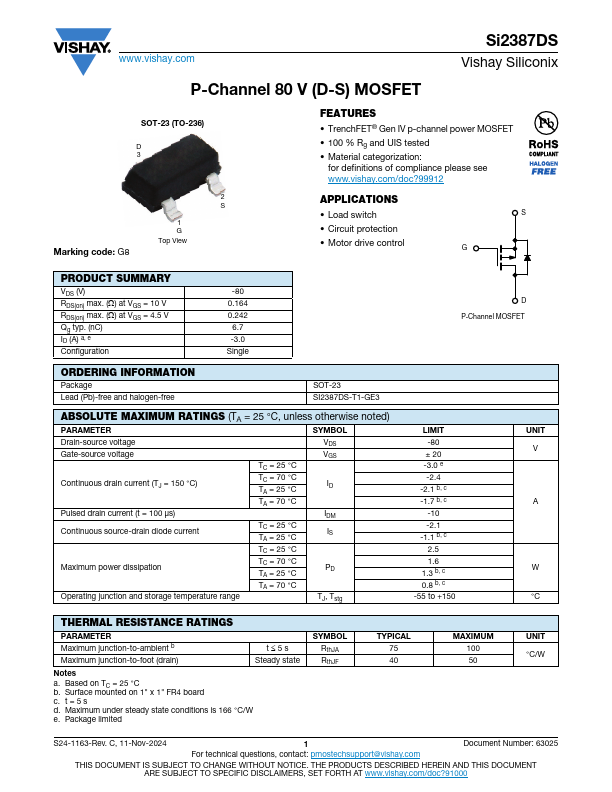

📥 Download Datasheet  Datasheet Preview Page 1

Description

www.vishay.com Si2387DS Vishay Siliconix P-Channel 80 V (D-S) MOSFET SOT-23 (TO-236) D 3 2 S Marking code: G8 1 G Top View .

📥 Download Datasheet

Preview of Si2387DS PDF

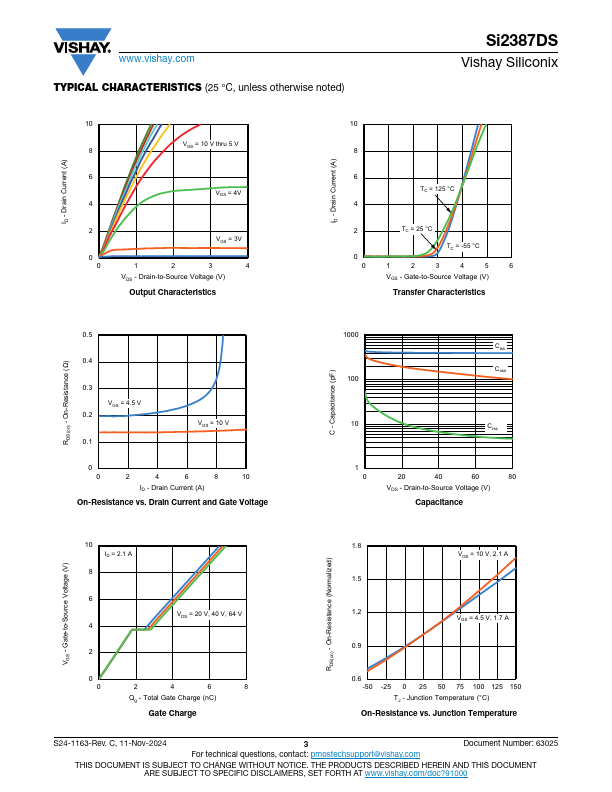

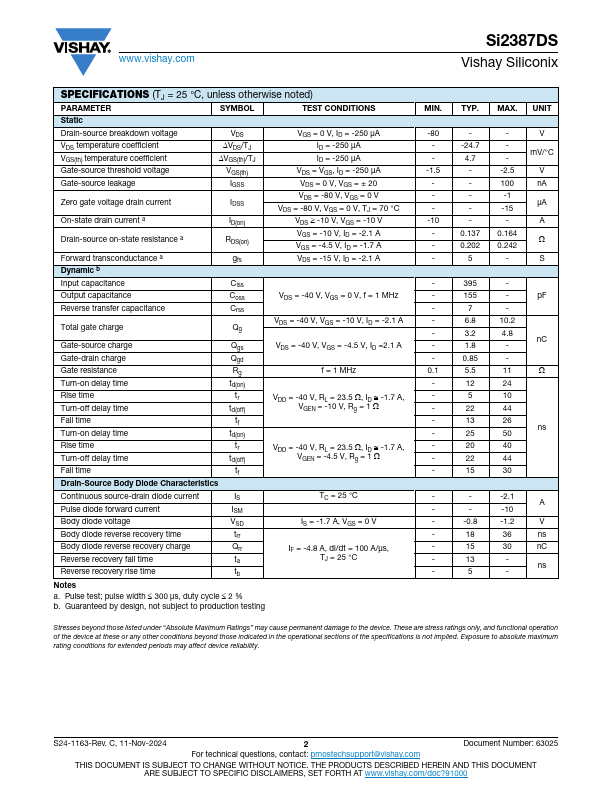

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
Si2387DS
Manufacturer
Vishay ↗
File Size
214.50 KB
Datasheet
Si2387DS-Vishay.pdf
Description
P-Channel 80V MOSFET

Features

* TrenchFET® Gen IV p-channel power MOSFET
* 100 % Rg and UIS tested

Applications

* Load switch
* Circuit protection
* Motor drive control S G PRODUCT SUMMARY VDS (V) RDS(on) max. () at VGS = 10 V RDS(on) max. () at VGS = 4.5 V Qg typ. (nC) ID (A) a, e Configuration -80 0.164 0.242 6.7 -3.0 Single ORDERING INFORMATION Package Lead (Pb)-free and halog
