PTFC210202FC - Thermally-Enhanced High Power RF LDMOS FET

Wolfspeed

📥 Download Datasheet

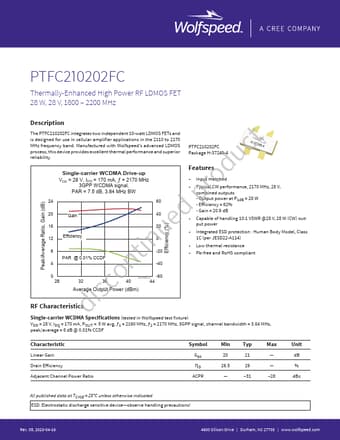

PTFC210202FC Datasheet Preview — Preview of PTFC210202FC PDF

Datasheet Details

Part number: PTFC210202FC
Manufacturer: Wolfspeed
File Size: 1.10 MB
Datasheet: PTFC210202FC-Wolfspeed.pdf
Description: Thermally-Enhanced High Power RF LDMOS FET

PTFC210202FC Product details

Description

The PTFC210202FC integrates two independent 10-watt LDMOS FETs and is designed for use in cellular amplifier applications in the 2110 to 2170 t MHz frequency band.Manufactured with Wolfspeed's advanced LDMOS c process, this device provides excellent thermal performance and superior reliability.du Single-carrier WCDMA Drive-up VDD = 28 V, IDQ = 170 mA, ƒ = 2170 MHz o 3GPP WCDMA signal, r PAR = 7.5 dB, 3.84 MHz BW p 24 60 d 20 Gain 40 e 16 20 u 12 Efficiency 0 in 8 -20 PAR @ 0.01%

Features

Input matched.
Typical CW performance, 2170 MHz, 28 V, combined outputs - Output power at P1dB = 28 W - Efficiency = 62% - Gain = 20.9 dB.
Capable of handling 10:1 VSWR @28 V, 28 W (CW) output power.
Integrated ESD protection : Human Body Model, Class 1C (per JESD22-A114).
Low thermal resistance.
Pb-free and RoHS compliant Peak/Average Ratio, Gain (dB) Efficiency (%) n 0 co 28 ptfc210202fc_g1 -60 32 36 40 44 Average Output Power (dB.
