PTFC270101M

High Power RF LDMOS Field Effect Transistor

PTFC270101M Features

* Unmatched input and output

* Typical CW performance, 2170 MHz, 28 V - Output power @ P1dB = 10 W - Gain = 20 dB - Efficiency = 60%

* Typical two-carrier WCDMA performance, 2170 MHz, 28 V, 8 dB PAR - Output power = 1.3 W avg - Gain = 21 dB - Efficiency = 21% - ACPR =

PTFC270101M General Description

The PTFC270101M is an unmatched 10-watt LDMOS FET suitable for power amplifier applications with frequencies from 900 MHz to t 2700 MHz. This LDMOS transistor offers excellent gain, efficiency c and linearity performance in a small overmolded plastic package. PTFC270101M Package PG-SON-10 Gain (d.

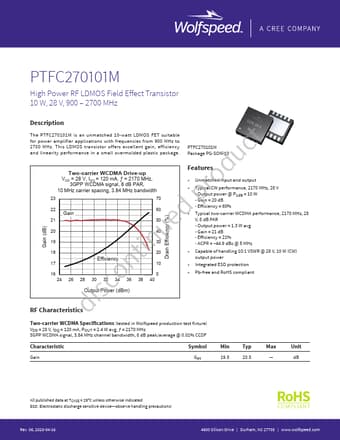

PTFC270101M Datasheet (1.44 MB)

Preview of PTFC270101M PDF

Datasheet Details

Part number:

PTFC270101M

Manufacturer:

Wolfspeed

File Size:

1.44 MB

Description:

High power rf ldmos field effect transistor.
