IRF840 Datasheet - nELL

IRF840 N-Channel Power MOSFET

The Nell IRF840 are N-Channel enhancement mode silicon gate power field effect transistors. They are designed, tested and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation. They are designed as an extremely efficient and reliable device for use in a wi.

IRF840 Features

* RDS(ON) = 0.85Ω @ VGS = 10V Ultra low gate charge(63nC Max.) Low reverse transfer capacitance (CRSS = 120pF typical) Fast switching capability 100% avalanche energy specified Improved dv/dt capability 150°C operation temperature D GDS TO-220AB (IRF840A) D (Drain) G (Gate) S (Source) PRODUCT

IRF840-nELL.pdf

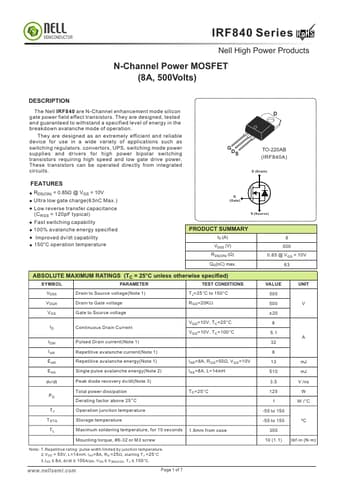

Preview of IRF840 PDF
IRF840 Datasheet Preview Page 2 IRF840 Datasheet Preview Page 3

Datasheet Details

Part number:

IRF840

Manufacturer:

nELL

File Size:

312.12 KB

Description:

N-channel power mosfet.
