NX3020NAKS-Q, 30V dual N-channel Trench MOSFET

NX3020NAKS-Q 30 V, dual N-channel Trench MOSFET 14 May 2025 Product data sheet 1.General .
Dual N-channel enhancement mode Field-Effect Transistor (FET) in a very small SOT363 (SC-88) Surface-Mounted Device (SMD) plastic package using Trench.

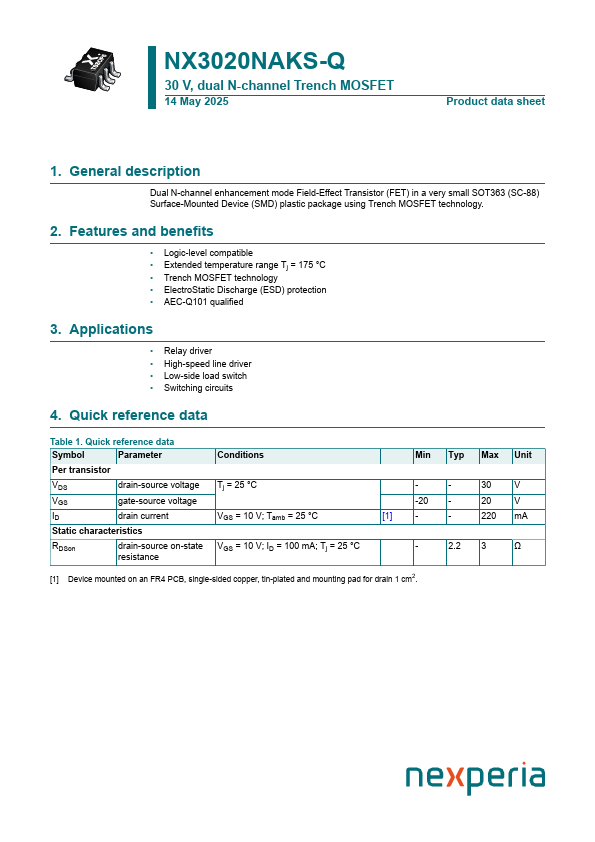

datasheet Preview Page 1 from Datasheet4u.com

NX3020NAKS-Q-nexperia.pdf

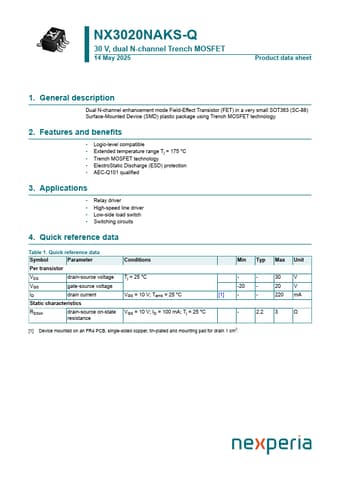

NX3020NAKS-Q Datasheet Preview — Preview of NX3020NAKS-Q PDF

Datasheet Details

Part number:

NX3020NAKS-Q

Manufacturer:

nexperia ↗

File Size:

286.51 KB

Description:

30V dual N-channel Trench MOSFET

Features

* Logic-level compatible
* Extended temperature range Tj = 175 °C
* Trench MOSFET technology
* ElectroStatic Discharge (ESD) protection

Applications

* Relay driver
* High-speed line driver
* Low-side load switch
* Switching circuits 4. Quick reference data Table 1. Quick reference data Symbol Parameter Conditions Min Typ Max Unit Per transistor VDS drain-source voltage Tj = 25 °C - - 30 V VGS gate-s
