NX3020NAKW-Q - 30V N-channel Trench MOSFET

Name: NX3020NAKW-Q
SKU: NX3020NAKW-Q-1593280

nexperia

📥 Download Datasheet

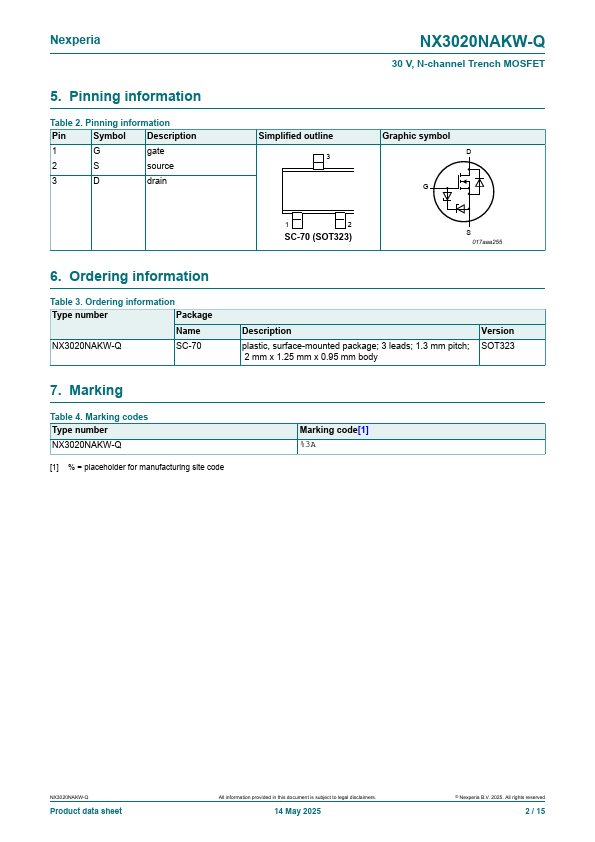

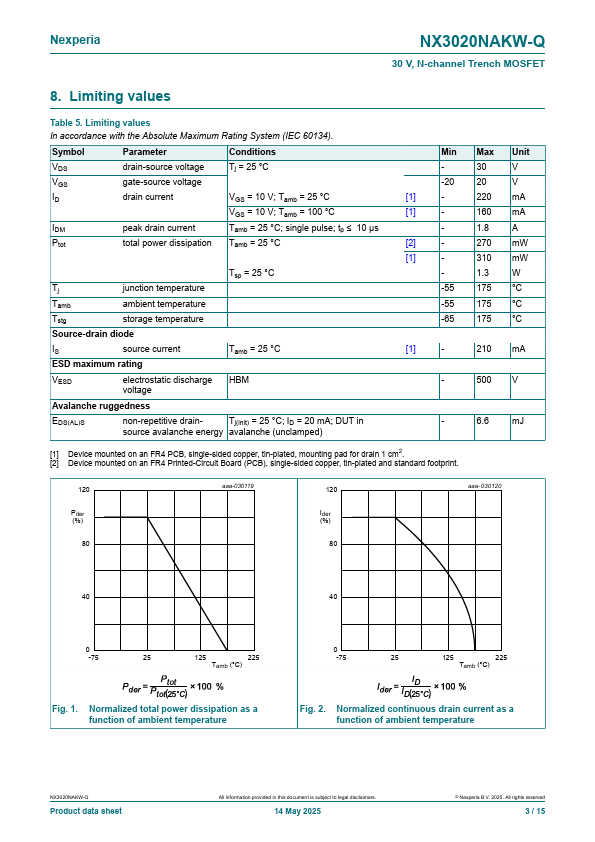

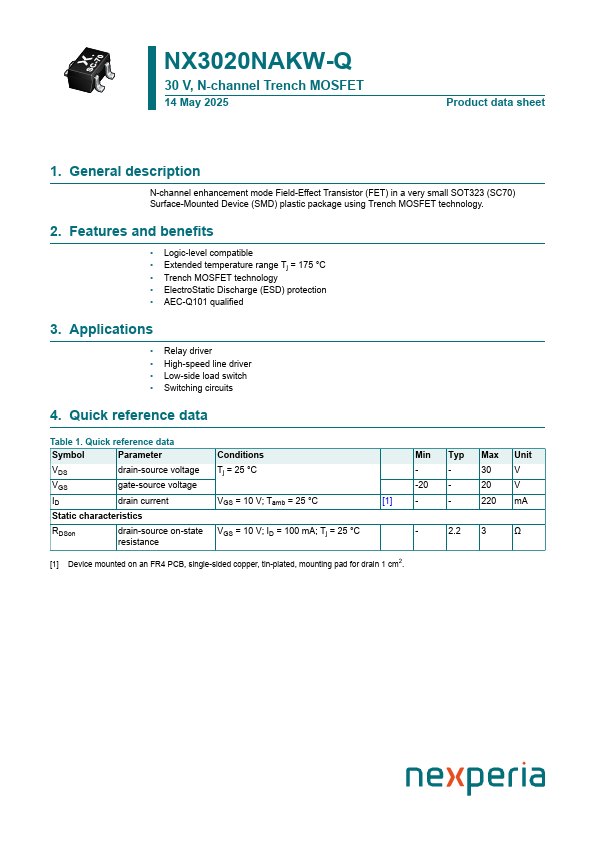

NX3020NAKW-Q Datasheet Preview — Preview of NX3020NAKW-Q PDF

Datasheet Details

Part number	NX3020NAKW-Q
Manufacturer	nexperia
File Size	268.38 KB
Description	30V N-channel Trench MOSFET
Datasheet	NX3020NAKW-Q-nexperia.pdf

NX3020NAKW-Q Product details

Description

N-channel enhancement mode Field-Effect Transistor (FET) in a very small SOT323 (SC70) Surface-Mounted Device (SMD) plastic package using Trench MOSFET technology.

Features

Logic-level compatible.
Extended temperature range Tj = 175 °C.
Trench MOSFET technology.
ElectroStatic Discharge (ESD) protection.
AEC-Q101 qualified 3.
