NX3008NBKMB, MOSFET

NX3008NBKMB 83B 30 V, single N-channel Trench MOSFET Rev.1 * 11 May 2012 Product data sheet 1.Product profile 1.1 General .
N-channel enhancement mode Field-Effect Transistor (FET) in a leadless ultra small DFN1006B-3 (SOT883B) Surface-Mounted Device (SMD) plastic package u.

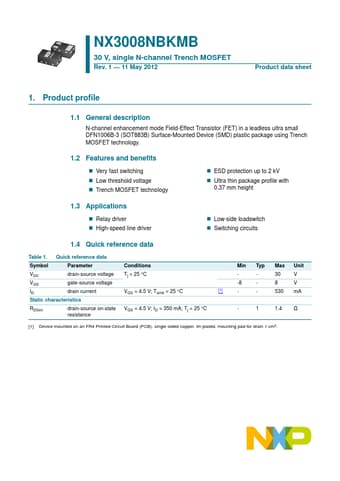

datasheet Preview Page 1 from Datasheet4u.com

NX3008NBKMB-NXPSemiconductors.pdf

NX3008NBKMB Datasheet Preview — Preview of NX3008NBKMB PDF

Datasheet Details

Part number:

NX3008NBKMB

Manufacturer:

NXP ↗ Semiconductors

File Size:

343.15 KB

Description:

MOSFET

Features

* Very fast switching
* Low threshold voltage
* Trench MOSFET technology
* ESD protection up to 2 kV

Applications

* Relay driver
* High-speed line driver
* Low-side loadswitch
* Switching circuits 1.4 Quick reference data Table 1. Symbol VDS VGS ID RDSon Quick reference data Parameter drain-source voltage gate-source voltage drain current drain-source on-state resistance VGS = 4.5 V; Tamb = 25
