PBSS4540Z - 40V NPN transistor

PBSS4540Z Description

PBSS4540Z 40 V low VCEsat NPN transistor 26 June 2025 Product data sheet 1.General .
NPN low VCEsat transistor in a small SOT223 Surface Mounted Device (SMD) plastic package.

PBSS4540Z Features

* Low collector-emitter saturation voltage
* High current capabilities
* Improved device reliability due to reduced heat generation.

PBSS4540Z Applications

* Supply line switching circuits
* Battery management applications
* DC/DC converter applications
* Strobe flash units
* Heavy duty battery powered equipment (motor and lamp drivers)
* MOSFET driver applications 4. Quick reference data Table 1. Quick

📥 Download Datasheet

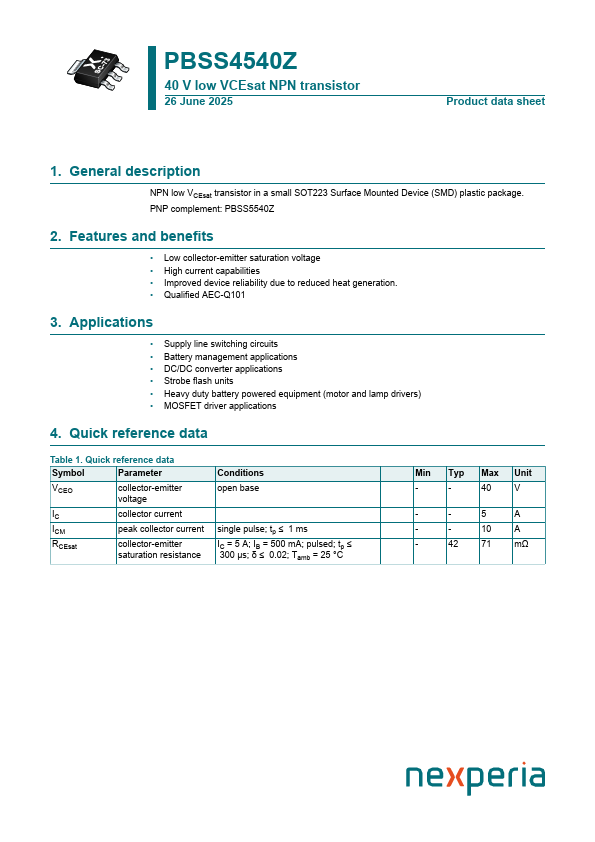

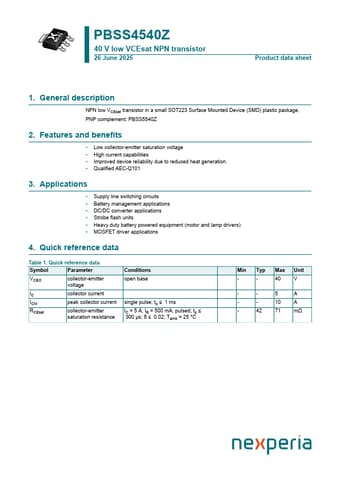

Preview of PBSS4540Z PDF

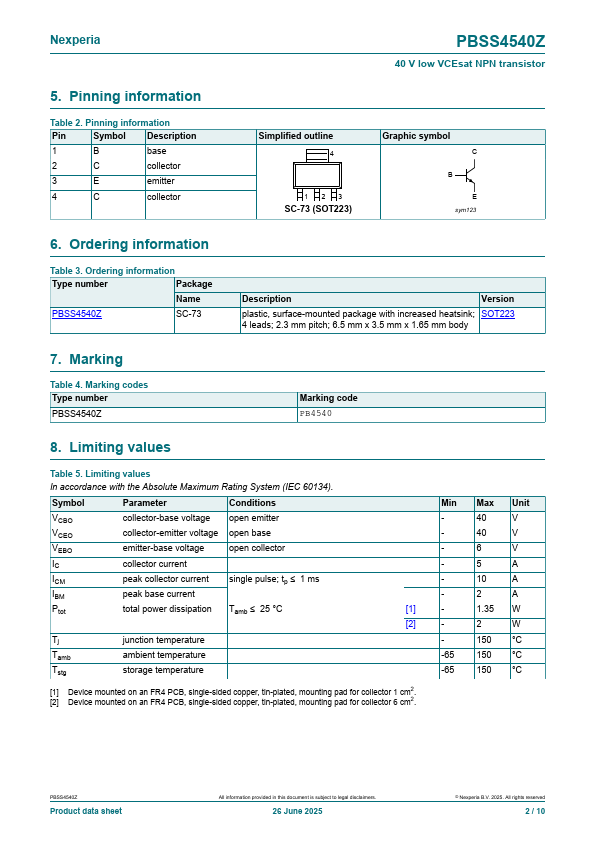

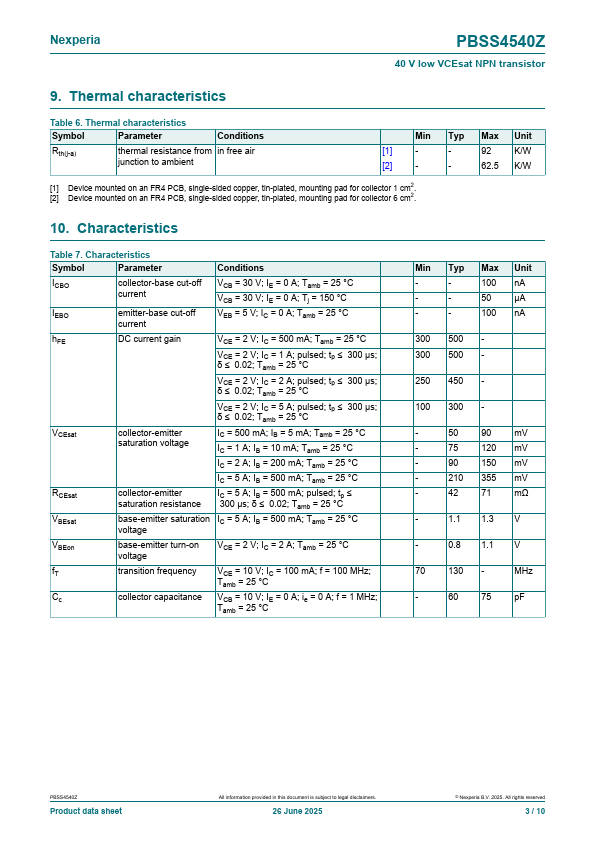

datasheet Preview Page 2 datasheet Preview Page 3
