PSC1665B1 - 650V 16A SiC Schottky diode

Datasheet Summary

Description

Nexperia introduces leading edge Silicon Carbide (SiC) Schottky diode for ultra-high performance, low loss, high efficiency power conversion applications.

Features

  • Zero forward and reverse recovery.
  • Temperature independent fast and smooth switching performance.
  • Outstanding figure-of-merit (Qc x VF).
  • High IFSM capability.
  • High power density.
  • Reduced system costs.
  • System miniaturization.
  • Reduced EMI 3.

📥 Download Datasheet

Datasheet preview – PSC1665B1

Datasheet Details

Part number PSC1665B1
Manufacturer nexperia
File Size 239.67 KB
Description 650V 16A SiC Schottky diode
Datasheet download datasheet PSC1665B1 Datasheet

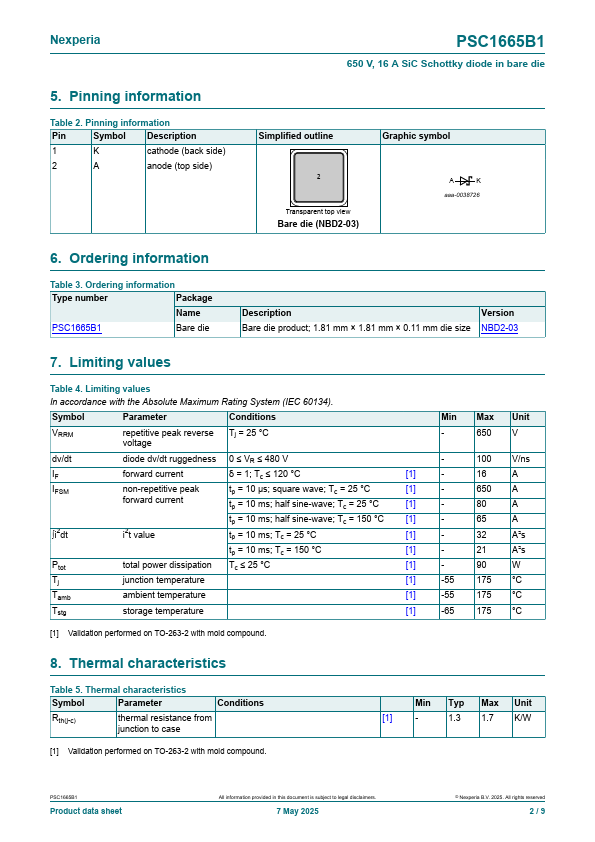

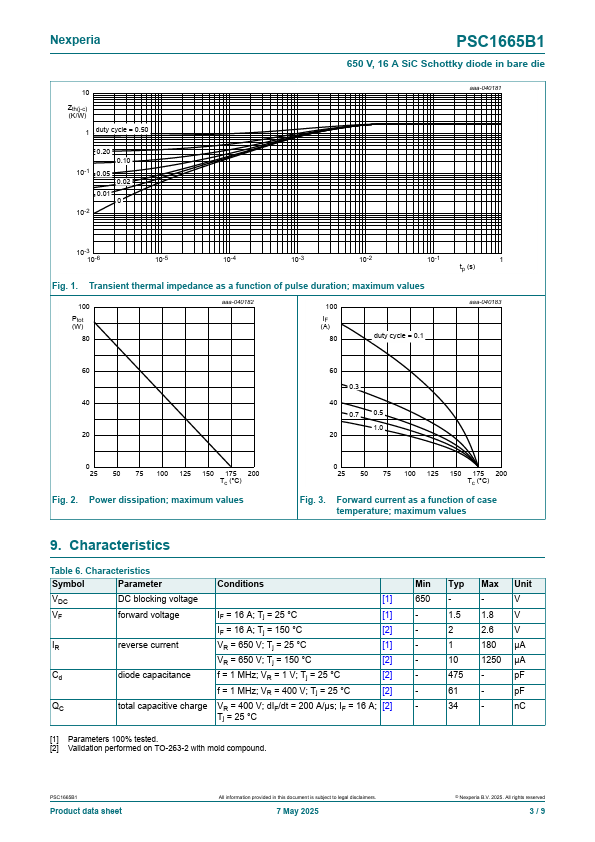

Additional preview pages of the PSC1665B1 datasheet.

📁 Similar Datasheet

  • PSC126-7iR - 6...12 A Switching Regulators (Power-One)
  • PSC128-7iR - 6...12 A Switching Regulators (Power-One)
  • PSC128-7iR - Positive Switching Regulators (Power-One AG)
  • PSC128-7iR - Positive Switching Regulators (Melcher AG)
  • PSC129-2 - 6...12 A Switching Regulators (Power-One)
  • PSC156-7iR - 6...12 A Switching Regulators (Power-One)
  • PSC158-7iR - 6...12 A Switching Regulators (Power-One)
  • PSC158-7iR - Positive Switching Regulators (Power-One AG)
  • PSC158-7iR - Positive Switching Regulators (Melcher AG)
  • PSC159-2 - 6...12 A Switching Regulators (Power-One)
Other Datasheets by nexperia

Full PDF Text Transcription

Click to expand full text

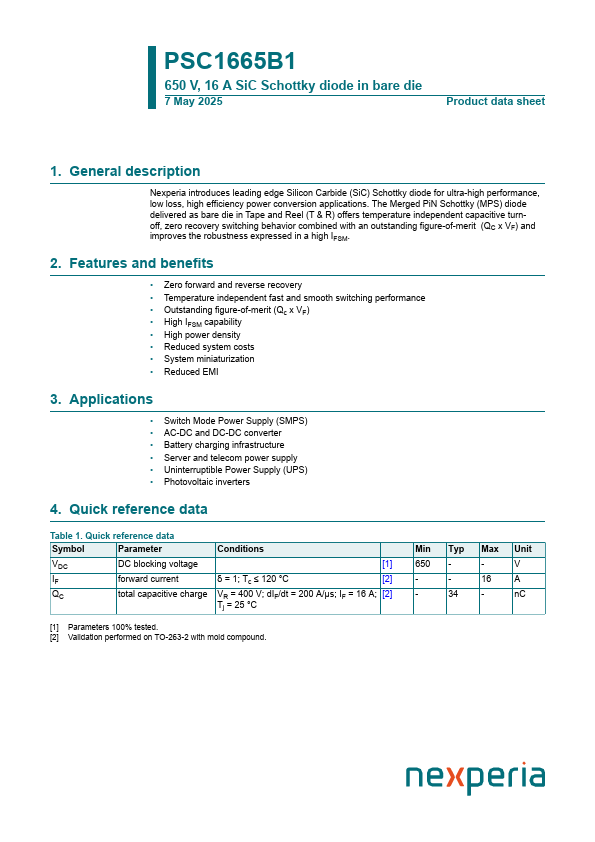

PSC1665B1 650 V, 16 A SiC Schottky diode in bare die 7 May 2025 Product data sheet 1. General description Nexperia introduces leading edge Silicon Carbide (SiC) Schottky diode for ultra-high performance, low loss, high efficiency power conversion applications. The Merged PiN Schottky (MPS) diode delivered as bare die in Tape and Reel (T & R) offers temperature independent capacitive turnoff, zero recovery switching behavior combined with an outstanding figure-of-merit (QC x VF) and improves the robustness expressed in a high IFSM. 2.
