SMD Type
Diodes

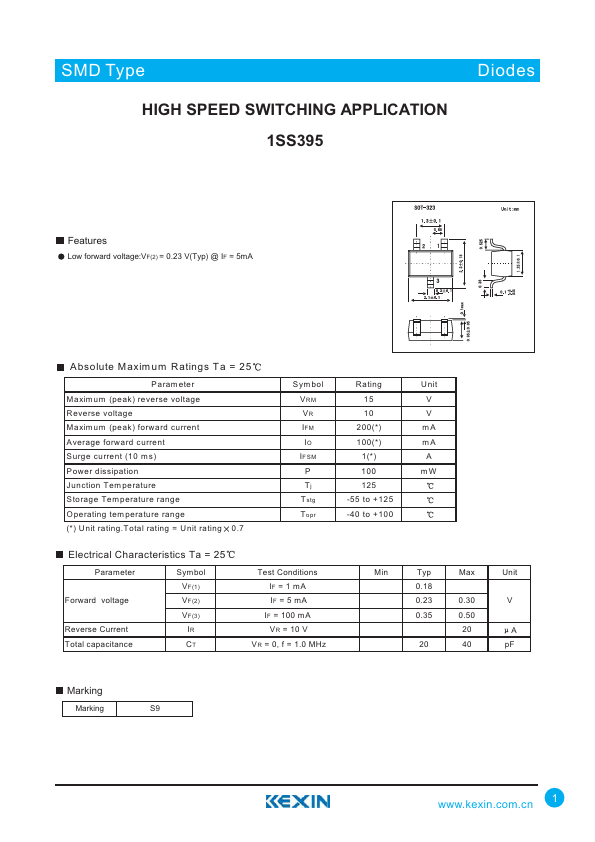

HIGH SPEED SWITCHING APPLICATION 1SS395
Features
Low forward voltage:VF(2) = 0.23 V(Typ) @ IF = 5mA
Absolute Maxim um Ratings Ta = 25
Param eter Maxim um (peak) reverse voltage Reverse voltage Maxim um (peak) forward current Average forward current Surge current (10 m s) Power dissipation Junction Tem perature Storage Tem perature range Operating tem perature range (- ) Unit rating.Total rating = Unit rating 0.7
Sym bol VRM VR IFM IO IFSM P Tj T stg Topr
Rating 15 10
200(- ) 100(- )
1(- ) 100 125 -55 to +125 -40 to +100
Unit V V mA mA A mW
Electrical Characteristics Ta = 25
Parameter
Forward voltage
Reverse Current Total capacitance
Symbol VF(1) VF(2) VF(3) IR...
