AO4912 Datasheet, transistor equivalent, Alpha & Omega Semiconductors

AO4912 Features

  • Transistor Q1 VDS (V) = 30V ID = 8.5A RDS(ON) < 17mΩ RDS(ON) < 25mΩ Q2 VDS(V) = 30V ID=7A (VGS = 10V) <26mΩ (VGS = 10V) <31mΩ (VGS = 4.5V) SCHOTTKY VDS (V) = 30V, IF = 3A, VF<0.5V@1A D1 D2 D2 G

PDF File Details

Part number:

AO4912

Manufacturer:

Alpha & Omega Semiconductors

File Size:

175.56kb

Download:

📄 Datasheet

Description:

Dual n-channel enhancement mode field effect transistor. The AO4912 uses advanced trench technology to provide excellent R DS(ON) and low gate charge. The two MOSFETs make a compact and effi

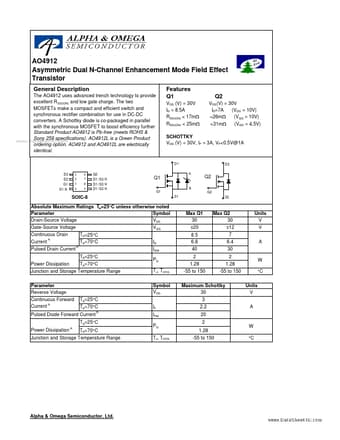

Datasheet Preview: AO4912 📥 Download PDF (175.56kb)
Page 2 of AO4912 Page 3 of AO4912

AO4912 Application

  • Applications OR USES AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS ARE NOT AUTHORIZED. AOS DOES NOT ASSUME ANY LIABILITY ARISING OUT OF
