BLF8G10LS-160V Datasheet - Ampleon

Power LDMOS transistor

BLF8G10LS-160V Features

* Excellent ruggedness

* High efficiency

* Low Rth providing excellent thermal stability

* Decoupling leads to enable improved video bandwidth (60 MHz typical)

* Designed for broadband operation (925 MHz to 960 MHz)

* Lower output capacitance for improved performance in Doher

BLF8G10LS-160V General Description

160 W LDMOS power transistor with improved video bandwidth for base station applications at frequencies from 925 MHz to 960 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a common source class-AB production test circuit. Test signal f IDq VDS PL(AV) Gp D ACPR (.

BLF8G10LS-160V Datasheet (356.92 KB)

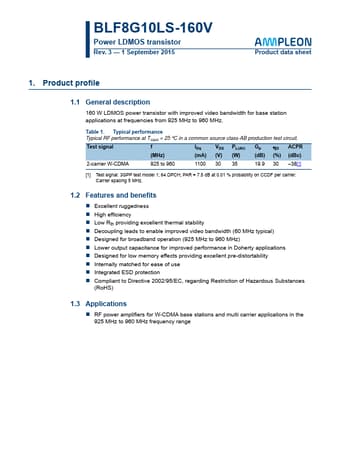

Preview of BLF8G10LS-160V PDF

Datasheet Details

Part number:

BLF8G10LS-160V

Manufacturer:

Ampleon

File Size:

356.92 KB

Description:

Power ldmos transistor.
