BLF8G10LS-270V, Power LDMOS transistor

BLF8G10LS-270V; BLF8G10LS-270GV Power LDMOS transistor Rev.2 * 1 September 2015 Product data sheet 1.Product profile 1.1 General descript.
270 W LDMOS power transistor with improved video bandwidth for base station applications at frequencies from 790 MHz to 960 MHz.

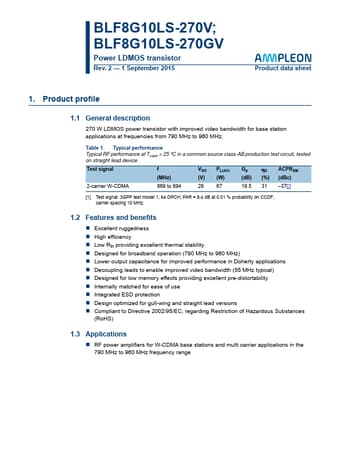

datasheet Preview Page 1 from Datasheet4u.com

BLF8G10LS-270V-Ampleon.pdf

BLF8G10LS-270V Datasheet Preview — Preview of BLF8G10LS-270V PDF

Datasheet Details

Part number:

BLF8G10LS-270V

Manufacturer:

Ampleon

File Size:

446.40 KB

Description:

Power LDMOS transistor

Features

* Excellent ruggedness
* High efficiency
* Low Rth providing excellent thermal stability
* Designed for broadband operation (790 MHz to 960 MHz)

Applications

* at frequencies from 790 MHz to 960 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a common source class-AB production test circuit, tested on straight lead device. Test signal f VDS PL(AV) Gp D ACPR5M (MHz) (V) (W) (dB) (%) (dBc) 2-carrier W-CDMA 869 to 894
