BLF8G22LS-270 Datasheet - Ampleon

Power LDMOS transistor

BLF8G22LS-270 Features

* Excellent ruggedness

* High efficiency

* Low Rth providing excellent thermal stability

* Designed for broadband operation

* Lower output capacitance for improved performance in Doherty applications

* Designed for low memory effects providing excellent pre-distortability

BLF8G22LS-270 General Description

270 W LDMOS power transistor for base station applications at frequencies from 2110 MHz to 2170 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a common source class-AB production test circuit. Test signal f IDq VDS PL(AV) Gp D ACPR5M (MHz) (mA) (V) (W) (dB) (.

BLF8G22LS-270 Datasheet (388.05 KB)

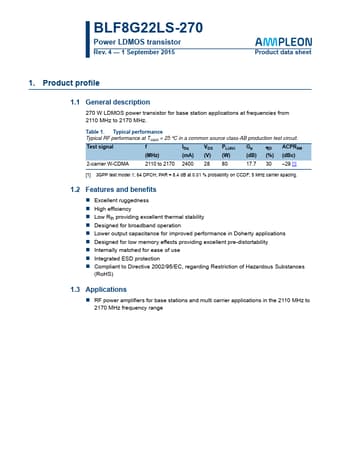

Preview of BLF8G22LS-270 PDF

Datasheet Details

Part number:

BLF8G22LS-270

Manufacturer:

Ampleon

File Size:

388.05 KB

Description:

Power ldmos transistor.
