BLF8G27LS-150GV, BLF8G27LS-150V, Power LDMOS transistor

BLF8G27LS-150V; BLF8G27LS-150GV Power LDMOS transistor Rev.4 * 1 September 2015 Product data sheet 1.Product profile 1.1 General descript.
150W LDMOS power transistor with improved video bandwidth for base station applications at frequencies from 2500 MHz to 2700 MHz.

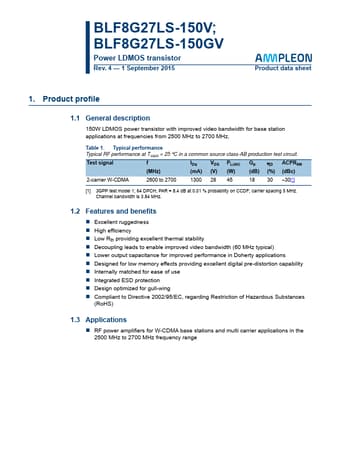

datasheet Preview Page 1 from Datasheet4u.com

BLF8G27LS-150V-Ampleon.pdf

BLF8G27LS-150GV Datasheet Preview — This datasheet PDF includes multiple part numbers: BLF8G27LS-150GV, BLF8G27LS-150V. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

BLF8G27LS-150GV, BLF8G27LS-150V

Manufacturer:

Ampleon

File Size:

463.19 KB

Description:

Power LDMOS transistor

Note:

This datasheet PDF includes multiple part numbers: BLF8G27LS-150GV, BLF8G27LS-150V.
Please refer to the document for exact specifications by model.

Features

* Excellent ruggedness
* High efficiency
* Low Rth providing excellent thermal stability
* Decoupling leads to enable improved video bandwidth (60 MHz typical)

Applications

* at frequencies from 2500 MHz to 2700 MHz. Table 1. Typical performance Typical RF performance at Tcase = 25 C in a common source class-AB production test circuit. Test signal f IDq VDS PL(AV) Gp D ACPR5M (MHz) (mA) (V) (W) (dB) (%) (dBc) 2-carrier W-CDMA 2600 to 2700 1300 28 45 18 30
