C3M0065100J Datasheet - CREE

C3M0065100J, Silicon Carbide Power MOSFET

VDS 1000 V C3M0065100J ID @ 25˚C 32 A Silicon Carbide Power MOSFET TM C3M MOSFET Technology RDS(on) 65 mΩ N-Channel Enhancement Mode .

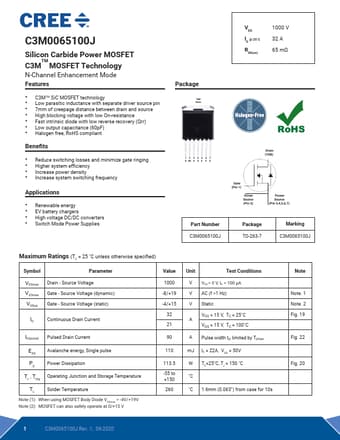

datasheet Preview Page 1 from Datasheet4u.com

C3M0065100J-CREE.pdf

C3M0065100J Datasheet Preview — Preview of C3M0065100J PDF

Datasheet Details

Part number:

C3M0065100J

Manufacturer:

CREE

File Size:

0.98 MB

Description:

Silicon Carbide Power MOSFET

Features

* Package
* C3MTM SiC MOSFET technology TAB
* Low parasitic inductance with separate driver source pin Drain
* 7mm of creepage distance between drain and source
* High blocking voltage with low On-resistance
* Fast intrinsic diode with low reverse recove

Applications

* Renewable energy
* EV battery chargers
* High voltage DC/DC converters
* Switch Mode Power Supplies 1234567 G KS S S S S S Drain (TAB) Gate (Pin 1) Driver Source (Pin 2) Power Source (Pin 3,4,5,6,7) Part Number Package Marking C3M0065100J TO-263-7 C3M006
