PE3010 Datasheet, Mosfet, ChipSourceTek

PE3010 Features

  • Mosfet
  • VDS = 30V, ID = 10A RDS(ON) < 10mΩ @ VGS=10V RDS(ON) < 15mΩ @ VGS=4.5V Schematic diagram
  • High Power and current handing capability
  • Lead free product is

PDF File Details

Part number:

PE3010

Manufacturer:

ChipSourceTek

File Size:

0.99MB

Download:

📄 Datasheet

Description:

N-channel enhancement mode power mosfet. The PE3010 uses advanced trench technology to provide excellent RDS(ON) and low gate charge. It can be used in a wide variety of appl

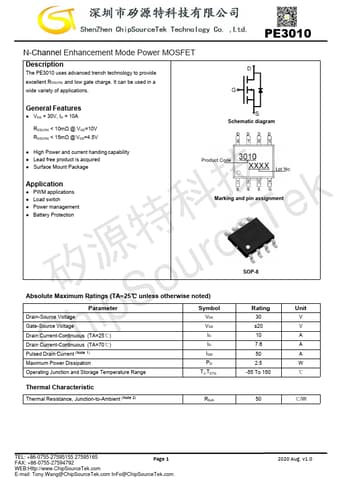

Datasheet Preview: PE3010 📥 Download PDF (0.99MB)
Page 2 of PE3010 Page 3 of PE3010

PE3010 Application

  • Applications General Features
  • VDS = 30V, ID = 10A RDS(ON) < 10mΩ @ VGS=10V RDS(ON) < 15mΩ @ VGS=4.5V Schematic diagram
  • High
